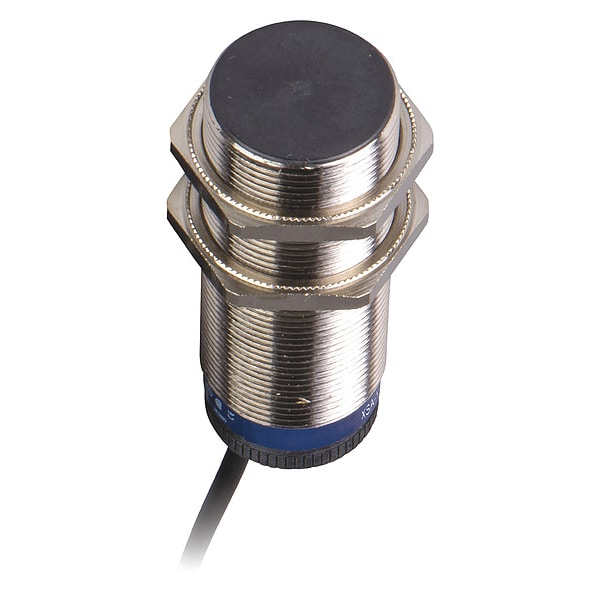

Sensor inductivo 58Vdc 200Ma Xs +Opciones
| Item | Inductive Sensor 58Vdc 200Ma Xs +Options |
|---|---|
| Proximity Sensor Style | Cylindrical M30 |
| Proximity Sensing Method | Inductive |
| Measurement Range | 8 to 15 mm |
| Proximity Sensor Power Requirement | 12 to 48 V DC |
| Proximity Sensor Output Circuit Type | 3-Wire DC PNP |
| Output Mode | 1 NC |
| Length | 81 mm |
| Max. Detecting Distance | 10 mm |
| Proximity Sensor Electrical Connection | Cable |
| Basic Proximity Sensor Case Material | Nickel Plated Brass; PPS |
| Proximity Sensor Operating Frequency | Less than Or Equal to 100 Hz |
| Operating Temp. Range | -25 to 70 deg C |
| IP Rating | IP67 |
| Max. Current Load | 15 mA |
| Standards | CSA; UL; CCC; CE Marked |
| Description/Special Features | Frontal Detection Face; Output State 1 LED Red |
| Series | XSA |
| Application | rotation monitoring |
| Supply Voltage Limits | 10-58 V DC |
| Switching Capacity | <= 200 mA overload and short-circuit protection |
| Maximum Voltage Drop | <1.8 V closed) |
| Storage Temp. Range | -40-85 °C |
| Differential Travel | 3...15% of Fr |
| Body Type | fixed |
| Package Quantity | 1 |
