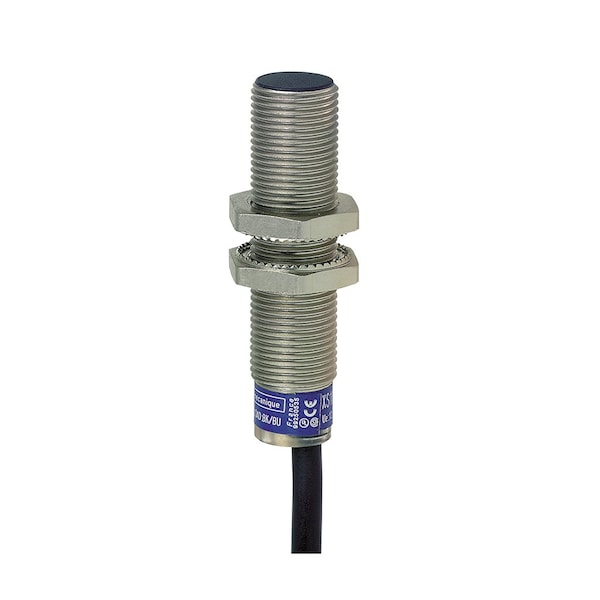

Sensor inductivo XS1 M12-L50mm de latón.
| Item | Inductive sensor XS1 M12 - L50mm - Brss |
|---|---|
| Proximity Sensor Style | Cylindrical M12 |
| Measurement Range | 0.2 to 2 mm |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Power Requirement | 12 to 24 V DC |
| Proximity Sensor Output Circuit Type | 4 to 20 mA; 2 Wire AC/DC |
| Output Mode | 1 NC |
| Length | 50 mm |
| Max. Detecting Distance | 2 mm |
| Depth | 12 mm |
| Proximity Sensor Electrical Connection | Cable |
| Basic Proximity Sensor Case Material | Nickel Plated Brass; PPS |
| Proximity Sensor Operating Frequency | Less than Or Equal to 1500 Hz |
| Max. Current Load | 4 mA |
| IP Rating | IP67 |
| Operating Temp. Range | -25 to 70 deg C |
| Standards | UL; CSA; CE Marked |
| Description/Special Features | Frontal Detection Face |
| Application | Application |
| Body Type | fixed |
| Series | XS1 |
| Supply Voltage Limits | 10-36 V DC |
| Package Quantity | 1 |
