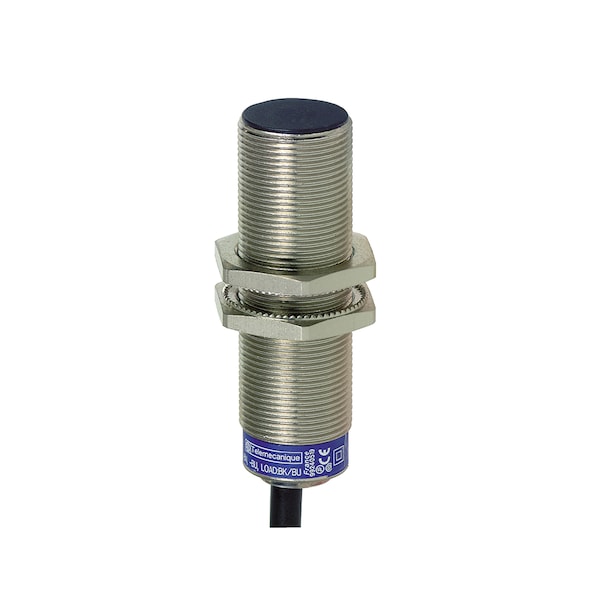

Sensor inductivo XS1 M18-L60mm de latón
| Proximity Sensor Style | Cylindrical M18 |
|---|---|
| Item | Inductive sensor XS1 M18 - L60mm - brass |
| Measurement Range | 0 to 4 mm |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Power Requirement | 24 to 210 V DC, 24 to 240 V AC |
| Proximity Sensor Output Circuit Type | 2-Wire AC/DC |
| Output Mode | 1 NO |
| Length | 60 mm |
| Max. Detecting Distance | 5 mm |
| Proximity Sensor Electrical Connection | Cable |
| Basic Proximity Sensor Case Material | Nickel Plated Brass; PPS |
| Proximity Sensor Operating Frequency | Less than Or Equal to 2000 Hz DC; Less than Or Equal to 25 Hz AC |
| IP Rating | IP68 |
| Description/Special Features | Frontal Detection Face; Short-Circuit Protection Multi Voltage; Output State 1 LED Yellow; Supply ON 1 LED Green |
| Standards | CCC; CSA; UL; CE Marked |
| Operating Temp. Range | -25 to 70 deg C |
| Application | 2-wire DC short-circuit protection; general purpose |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-7 |
| Maximum Delay Response | 2 msec |
| Maximum Delay First Up | 70 msec |
| Maximum Voltage Drop | <5.5 V closed state) |
| Series | XS1 |
| Body Type | fixed |
| Storage Temp. Range | -40-85 °C |
| Maximum Delay Recovery | 4 msec |
| Vibration Resistance | 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6 |
| Differential Travel | Sr, 1...15% |
| Switching Capacity | 5...300 mA AC overload and short-circuit protection || 5...200 mA DC overload and short-circuit protection |
| Package Quantity | 1 |
