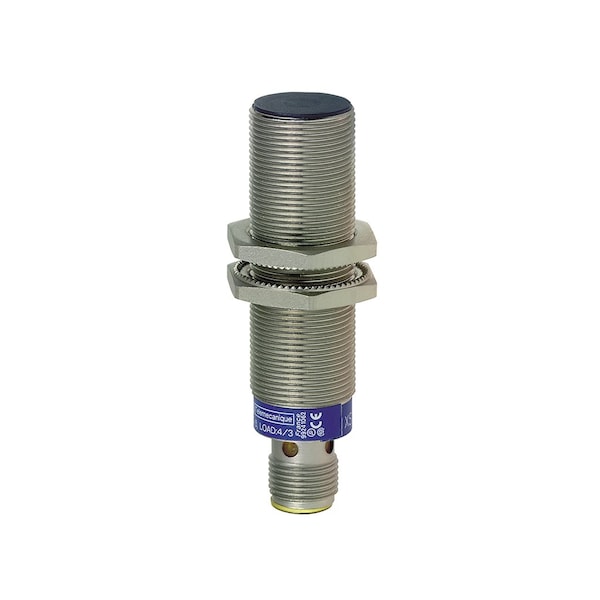

Sensor inductivo XS1 M18-L70mm-acero.
| Item | Inductive sensor XS1 M18 - L70mm - stain |
|---|---|
| Proximity Sensor Style | Cylindrical M18 |
| Proximity Sensing Method | Inductive |
| Measurement Range | 0 to 4 mm |
| Proximity Sensor Power Requirement | 12 to 24 V DC |
| Proximity Sensor Output Circuit Type | 3-Wire DC PNP |
| Output Mode | 1 NO |
| Length | 70 mm |
| Max. Detecting Distance | 5 mm |
| Depth | 18 mm |
| Proximity Sensor Electrical Connection | Male Connector M12, 4 Pins |
| Basic Proximity Sensor Case Material | Stainless Steel |
| Proximity Sensor Operating Frequency | Less than Or Equal to 1000 Hz |
| Description/Special Features | Frontal Detection Face; Output State 1 LED Yellow |
| Max. Current Load | 15 mA |
| Standards | UL; CSA; CE Marked |
| Operating Temp. Range | -25 to 70 deg C |
| IP Rating | IP67 |
| Application | selective detection of non ferrous materials |
| Switching Capacity | <= 200 mA overload and short-circuit protection |
| Maximum Voltage Drop | <2.6 V closed) |
| Series | XS1 |
| Body Type | fixed |
| Maximum Delay First Up | 10 msec |
| Maximum Delay Response | 0.3 msec |
| Maximum Delay Recovery | 0.7 msec |
| Supply Voltage Limits | 10-38 V DC |
| Package Quantity | 1 |
