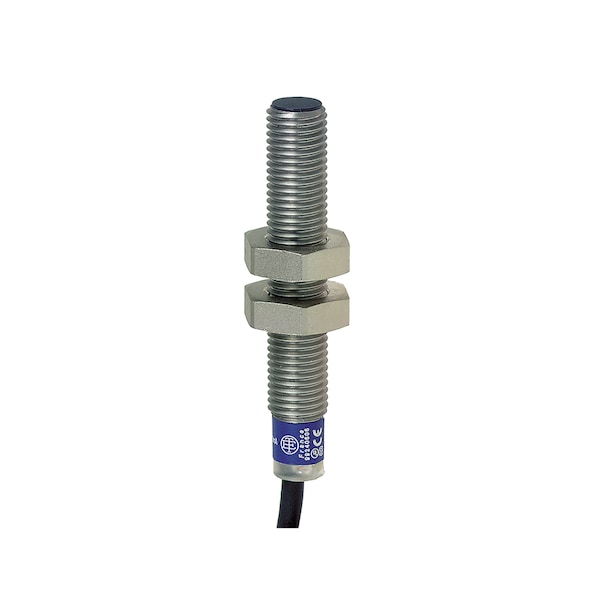

Sensor inductivo XS1 M8-L50mm-acero inoxidable.
| Item | Inductive sensor XS1 M8 - L50mm - stainl |
|---|---|
| Material | Stainless Steel |
| Length | 51 mm |
| Size | 51 mm |
| Switching Frequency | <= 5000 Hz |
| Discrete Output Type | PNP |
| Current Consumption | 0...10 mA no-load |
| Discrete Output Function | 1 NO + 1 NC |
| Maximum Delay First Up | 5 msec |
| Series Name | general purpose |
| Cable Length | 2 m |
| Sensor Name | XS1 |
| Detection Face | frontal |
| Body Type | fixed |
| Thread Type | M8 x 1 |
| Vibration Resistance | 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6 |
| Type Of Output Signal | discrete |
| Output Circuit Type | DC |
| Maximum Delay Recovery | 0.1 ms |
| Electrical Connection | Cable |
| Ip Degree Of Protection | IP67 |
| Operating Zone | 0-1.2 mm |
| Detector Flush Mounting Acceptance | flush mountable |
| Cable Composition | 4 x 0.08 mm² |
| Status Led | output state 1 LED yellow) |
| Wire Insulation Material | PVC |
| Marking | CE |
| Ambient Air Temperature For Storage | -40-85°C |
| Wiring Technique | 4-wire |
| Maximum Delay Response | 0.1 ms |
| Differential Travel | 1...15% of Sr |
| Product Certifications | CSA || UL |
| Supply Voltage Limits | 10-36 V DC |
| Threaded Length | 42 mm |
| Switching Capacity In Ma | <= 200 mA overload and short-circuit protection |
| Sensor Design | cylindrical M8 |
| Front Material | PPS |
| [Sn] Nominal Sensing Distance | 1.5 mm |
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
| Maximum Voltage Drop | <2 V closed |
| Sensor Type | inductive proximity sensor |
| Enclosure Material | stainless steel 303 |
| Ambient Air Temperature For Operation | -25-70°C |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Package Quantity | 1 |
