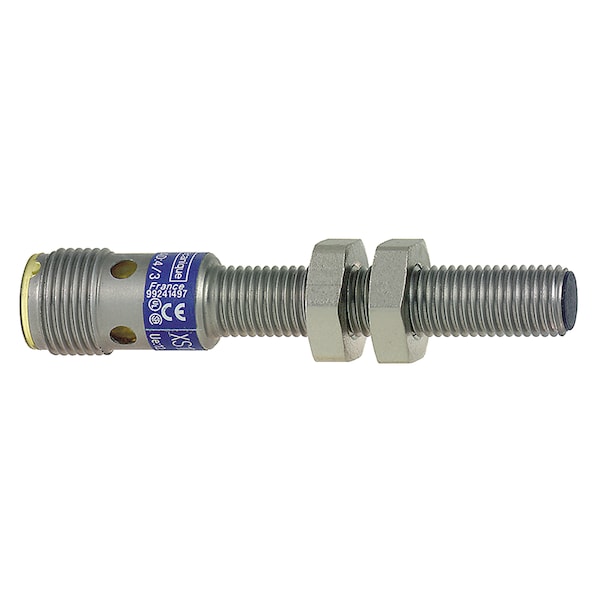

Sensor inductivo XS1 M8-L61mm de acero inoxidable
| Item | Inductive sensor XS1 M8 - L61mm - stainl |
|---|---|
| Material | Stainless Steel |
| Length | 61 mm |
| Height | 15 mm |
| Size | 61 mm |
| Product Certifications | CCC || CSA, UL |
| Body Type | fixed |
| Switching Frequency | <= 25 Hz AC || <= 3000 Hz DC |
| Output Circuit Type | DC, AC |
| [Sn] Nominal Sensing Distance | 1 mm |
| Type Of Output Signal | discrete |
| Sensor Name | XS1 |
| Series Name | general purpose |
| Detection Face | frontal |
| Electrical Connection | male connector 1/2"20 UNF, 3 pins |
| Wiring Technique | 2-wire |
| Enclosure Material | Stainless steel |
| Sensor Type | inductive proximity sensor |
| Sensor Design | cylindrical M8 |
| Switching Capacity In Ma | 5...100 mA |
| Marking | CE |
| Discrete Output Function | 1 NO |
| Ip Degree Of Protection | IP67 |
| Iso Thread | M8 x 1 |
| Ambient Air Temperature For Operation | -25-80°C |
| Detector Flush Mounting Acceptance | flush mountable |
| [Us] Rated Supply Voltage | 24...210 V DC || 24...240 V AC |
| Front Material | PPS |
| Package Quantity | 1 |
