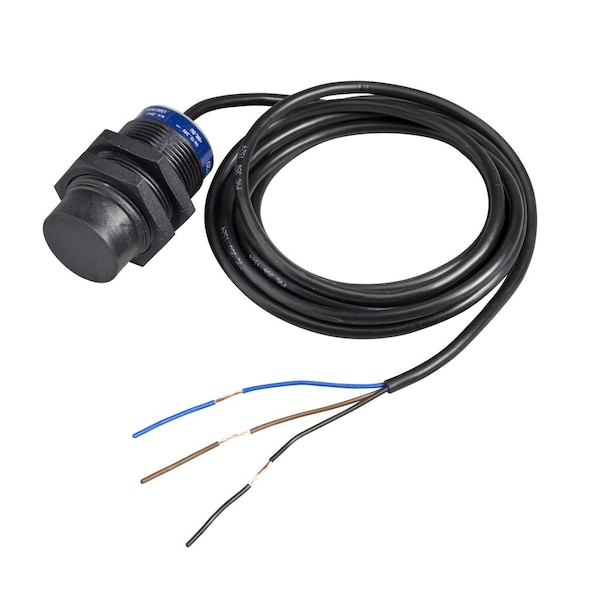

Sensor inductivo XS4 M30-L53mm-PBT -
| Item | Inductive sensor XS4 M30 - L53mm - PBT - |
|---|---|
| Proximity Sensor Style | Cylindrical M30 |
| Proximity Sensing Method | Inductive |
| Measurement Range | 1.5 to 15 mm |
| Proximity Sensor Power Requirement | 12 to 24 V DC |
| Proximity Sensor Output Circuit Type | 4 to 20 mA; 2 Wire AC/DC |
| Length | 53 mm |
| Max. Detecting Distance | 15 mm |
| Depth | 30 mm |
| Proximity Sensor Electrical Connection | Cable |
| Basic Proximity Sensor Case Material | PBT, PPS |
| Proximity Sensor Operating Frequency | Less than Or Equal to 300 Hz |
| IP Rating | IP67 |
| Description/Special Features | Frontal Detection Face |
| Standards | UL; CSA; CE Marked |
| Max. Current Load | 4 mA |
| Operating Temp. Range | -25 to 70 deg C |
| Application | Application |
| Body Type | fixed |
| Series | XS4 |
| Supply Voltage Limits | 10-38 V DC |
| Package Quantity | 1 |
