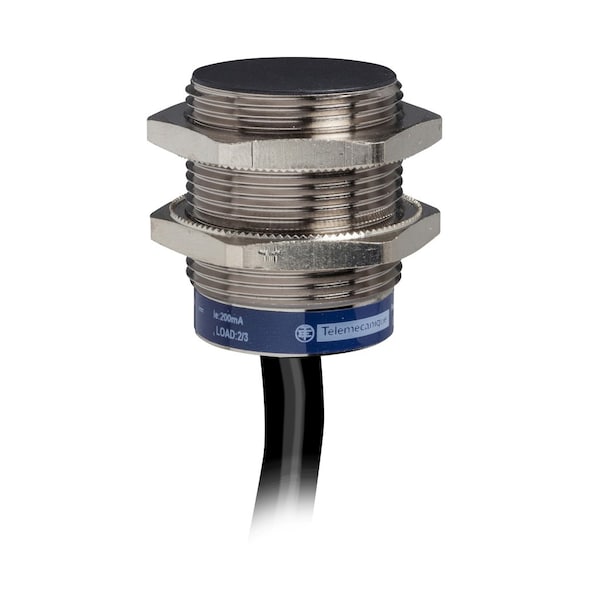

Sensor inductivo XS6 M30-L43mm de latón.
| Item | Inductive sensor XS6 M30 - L43mm - brass |
|---|---|
| Proximity Sensor Style | Cylindrical M30 |
| Proximity Sensing Method | Inductive |
| Measurement Range | 8 to 15 mm |
| Proximity Sensor Power Requirement | 12 to 24 V DC |
| Proximity Sensor Output Circuit Type | 2-Wire DC |
| Output Mode | 1 NO |
| Length | 44 mm |
| Max. Detecting Distance | 15 mm |
| Proximity Sensor Electrical Connection | Cable |
| Basic Proximity Sensor Case Material | Nickel Plated Brass; PPS |
| Proximity Sensor Operating Frequency | Less than Or Equal to 500 Hz DC |
| Standards | UL; CSA; CE Marked |
| Description/Special Features | Frontal Detection Face; Output State 1 LED Yellow |
| Operating Temp. Range | -25 to 70 deg C |
| IP Rating | IP69K, IP68 |
| Application | General Purpose |
| Series | XS6 |
| Storage Temp. Range | -40-85 °C |
| Maximum Delay Recovery | 0.3 msec |
| Supply Voltage Limits | 10-36 V DC |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Vibration Resistance | 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6 |
| Body Type | fixed |
| Maximum Delay First Up | 10 msec |
| Switching Capacity | <= 100 mA DC overload and short-circuit protection |
| Maximum Voltage Drop | <4 V closed) |
| Maximum Delay Response | 0.3 msec |
| Differential Travel | Sr, 1...15% |
| Package Quantity | 1 |
