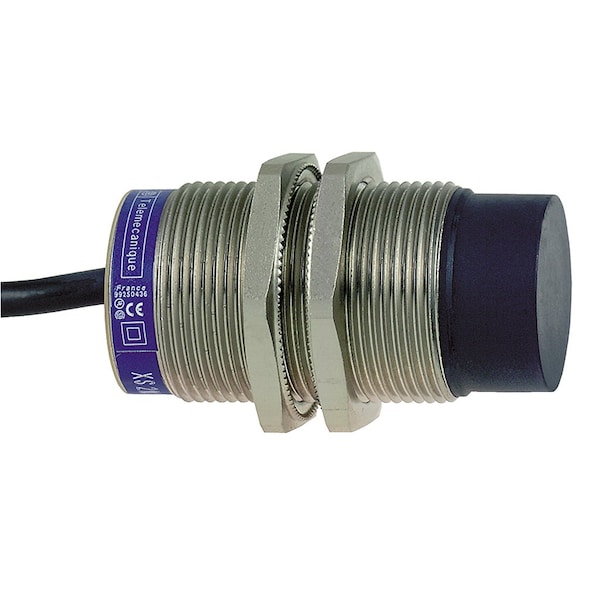

Sensor inductivo XS6 M30-L63 mm de metal en color latón.
| Proximity Sensor Style | Cylindrical M30 |
|---|---|
| Item | Inductive sensor XS6 M30 - L63mm - brass |
| Proximity Sensing Method | Inductive |
| Measurement Range | 15 to 40 mm |
| Proximity Sensor Power Requirement | 12 to 48 V DC |
| Proximity Sensor Output Circuit Type | 3-Wire DC PNP |
| Output Mode | 1 NC |
| Length | 66 mm |
| Max. Detecting Distance | 22 mm |
| Proximity Sensor Electrical Connection | Cable |
| Basic Proximity Sensor Case Material | Nickel Plated Brass; PPS |
| Proximity Sensor Operating Frequency | Less than Or Equal to 500 Hz DC |
| Standards | E2; CSA; UL; CE Marked |
| Description/Special Features | Frontal Detection Face; Output State 1 LED Yellow |
| Max. Current Load | 10 mA |
| Operating Temp. Range | -25 to 70 deg C |
| IP Rating | IP69K, IP68 |
| Application | mobile equipment; general purpose |
| Series | XS6 |
| Maximum Voltage Drop | <2 V closed) |
| Maximum Delay Response | 0.6 msec |
| Vibration Resistance | 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6 |
| Differential Travel | Sr, 1...15% |
| Switching Capacity | <= 200 mA DC overload and short-circuit protection |
| Body Type | fixed |
| Maximum Delay Recovery | 1.4 msec |
| Storage Temp. Range | -40-85 °C |
| Supply Voltage Limits | 10-58 V DC |
| Maximum Delay First Up | 10 msec |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Package Quantity | 1 |
