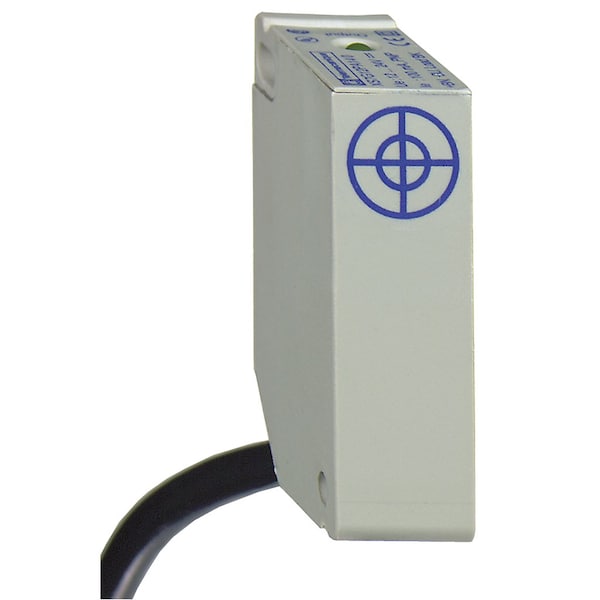

Sensor inductivo XS7 12x40x26-plástico.
| Proximity Sensor Style | Form 12 x 40 x 26 |
|---|---|
| Item | Inductive sensor XS7 12x40x26 - plastic |
| Measurement Range | 0 to 1.6 mm |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Power Requirement | 12 to 48 V DC |
| Proximity Sensor Output Circuit Type | 4-Wire DC PNP |
| Output Mode | 1 NO or 1 NC programmable |
| Length | 40 mm |
| Max. Detecting Distance | 2 mm |
| Width | 12 mm |
| Depth | 26 mm |
| Proximity Sensor Electrical Connection | Cable |
| Basic Proximity Sensor Case Material | Plastic |
| Proximity Sensor Operating Frequency | Less than Or Equal to 2000 Hz |
| Description/Special Features | Lateral Detection Face; Output State 1 LED Yellow |
| IP Rating | IP67 |
| Standards | CSA; UL; CCC; CE Marked |
| Max. Current Load | 10 mA |
| Operating Temp. Range | -25 to 70 deg C |
| Application | General Purpose |
| Maximum Voltage Drop | <2.6 V closed) |
| Differential Travel | Sr, 3...20% |
| Maximum Delay Response | 0.5 msec |
| Storage Temp. Range | -40-85 °C |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Supply Voltage Limits | 10-58 V DC |
| Switching Capacity | <= 200 mA overload and short-circuit protection |
| Series | XS7 |
| Maximum Delay Recovery | 1 msec |
| Body Type | fixed |
| Maximum Delay First Up | 4 msec |
| Vibration Resistance | 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6 |
| Package Quantity | 1 |
