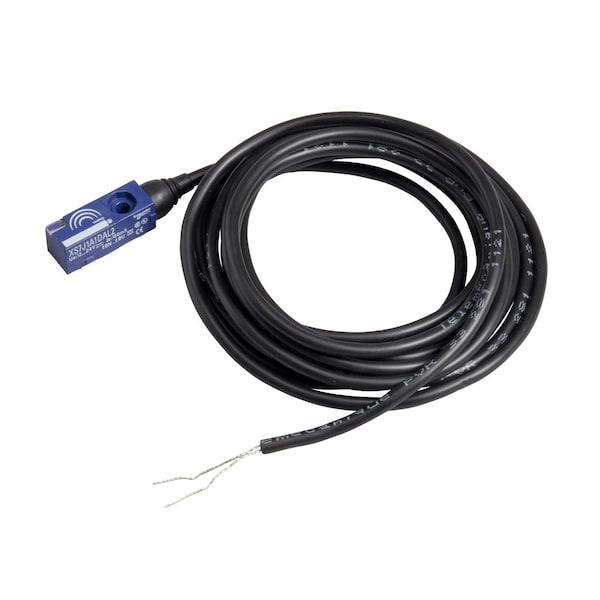

Sensor inductivo XS7 8x22x8-PBT-Sn2.
| Item | Inductive sensor XS7 8x22x8 - PBT - Sn2. |
|---|---|
| Proximity Sensor Style | Flat Form 8 x 22 x 8 |
| Measurement Range | 0 to 2 mm |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Power Requirement | 12 to 24 V DC |
| Proximity Sensor Output Circuit Type | 3-Wire DC PNP |
| Output Mode | 1 NC |
| Length | 22 mm |
| Max. Detecting Distance | 2 mm |
| Width | 8 mm |
| Proximity Sensor Electrical Connection | Cable |
| Depth | 8 mm |
| Basic Proximity Sensor Case Material | PBT |
| Proximity Sensor Operating Frequency | Less than Or Equal to 2000 Hz |
| IP Rating | IP67 |
| Standards | CSA; UL; C-tick; CE Marked |
| Description/Special Features | Frontal Detection Face; Output State 1 LED Yellow |
| Max. Current Load | 10 mA |
| Operating Temp. Range | -25 to 70 deg C |
| Application | General Purpose |
| Maximum Voltage Drop | <2 V closed) |
| Switching Capacity | <= 100 mA DC overload and short-circuit protection |
| Differential Travel | Sr, 1...15% |
| Supply Voltage Limits | 10-36 V DC |
| Body Type | fixed |
| Maximum Delay First Up | 5 msec |
| Storage Temp. Range | -40-85 °C |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Series | XS7 |
| Maximum Delay Response | 0.1 msec |
| Vibration Resistance | 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6 |
| Maximum Delay Recovery | 0.1 msec |
| Package Quantity | 1 |
