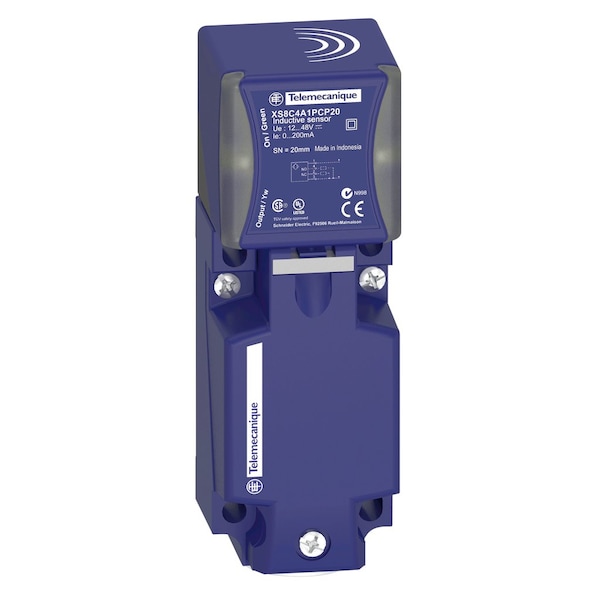

Sensor inductivo XS8 40x40x117-PBT-S.
| Proximity Sensor Style | Form 40 x 40 x 117 |
|---|---|
| Item | Inductive sensor XS8 40x40x117 - PBT - S |
| Proximity Sensing Method | Inductive |
| Measurement Range | 0 to 32 mm |
| Proximity Sensor Power Requirement | 12 to 48 V DC |
| Proximity Sensor Output Circuit Type | 4-Wire DC PNP |
| Output Mode | 1 NO + 1 NC |
| Length | 40 mm |
| Width | 117 mm |
| Max. Detecting Distance | 40 mm |
| Depth | 40 mm |
| Proximity Sensor Electrical Connection | 4, Screw-Clamp Terminals x 1.5 mm |
| Basic Proximity Sensor Case Material | PBT |
| Proximity Sensor Operating Frequency | Less than Or Equal to 200 Hz |
| Description/Special Features | 5 Positions Turret Head Detection Face; Supply ON 1 LED Green; Output State 1 LED Yellow |
| IP Rating | IP69K, IP67, IP65 |
| Operating Temp. Range | -25 to 70 deg C |
| Max. Current Load | 15 mA |
| Standards | E2; TÃœV; UL; CCC; CSA; SIL 2 EN/IEC 61508; PL = d EN/ISO 13849-1; SILCL 2 IEC 62061; CE Marked |
| Application | mobile equipment; general purpose |
| Storage Temp. Range | -40-85 °C |
| Body Type | fixed |
| Shock Resistance | 50 gn 11 msEN 60068-2-27 |
| Supply Voltage Limits | 10-58 V DC |
| Maximum Delay Recovery | 2.5 msec |
| Differential Travel | Sr, 3...15% |
| Maximum Delay First Up | 7.5 msec |
| Series | XS8 |
| Switching Capacity | <= 200 mA overload and short-circuit protection |
| Vibration Resistance | 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6 |
| Maximum Delay Response | 1.4 msec |
| Maximum Voltage Drop | <2 V closed) |
| Package Quantity | 1 |
