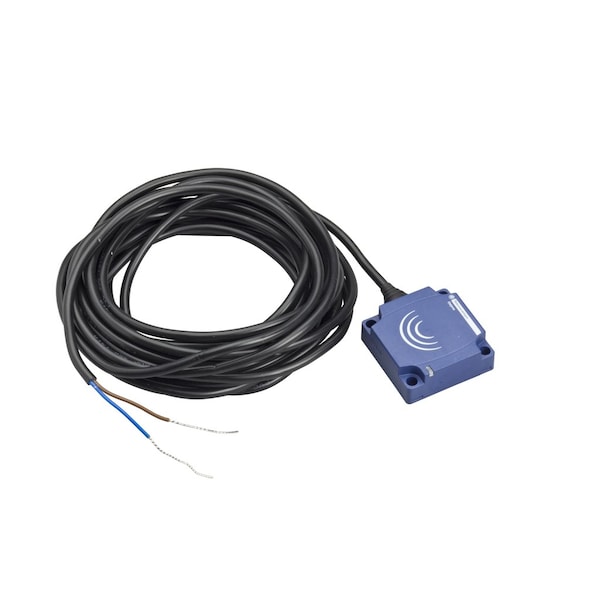

Sensor inductivo XS9 40x40x15-PBT-Sn
| Proximity Sensor Style | Flat Form 40 x 40 x 15 |
|---|---|
| Item | Inductive sensor XS9 40x40x15 - PBT - Sn |
| Proximity Sensing Method | Inductive |
| Measurement Range | 2 to 15 mm |
| Proximity Sensor Power Requirement | 24V DC |
| Proximity Sensor Output Circuit Type | 0 to 10 V; 3 Wire AC/DC |
| Length | 40 mm |
| Width | 40 mm |
| Max. Detecting Distance | 15 mm |
| Depth | 15 mm |
| Proximity Sensor Electrical Connection | Cable |
| Basic Proximity Sensor Case Material | PBT |
| Proximity Sensor Operating Frequency | Less than Or Equal to 1000 Hz |
| Description/Special Features | Frontal Detection Face |
| Operating Temp. Range | -25 to 70 deg C |
| IP Rating | IP68 |
| Max. Current Load | 4 mA |
| Standards | CSA; Ecolab; UL; CE Marked |
| Application | Application |
| Series | XS9 |
| Body Type | fixed |
| Storage Temp. Range | -40-85 °C |
| Vibration Resistance | 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6 |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Supply Voltage Limits | 15-36 V DC |
| Package Quantity | 1 |
