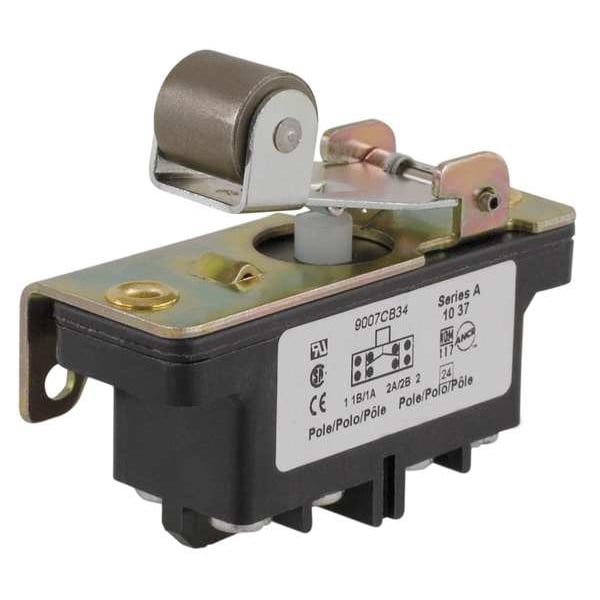

Interruptor de acción rápida industrial, palanca, actuador de rodillo, 2NC/2NO, capacidad de contacto de 10A @ 600V AC.
| Item | Snap Action Switch |
|---|---|
| Actuator Type - Snap Action Switch | Lever, Roller |
| AC Contact Rating - Snap Action Switch | 10 A @ 600 V |
| DC Contact Rating - Snap Action Switch | 1 A @ 125 V |
| Contact Form- Switches | 2NC, 2NO |
| Lever Actuator Length - Snap Action Switch | 1.65 in |
| Height - Snap Action Switch | 0.83 in |
| Width - Snap Action Switch | 2-1/2 in |
| Depth - Snap Action Switch | 1.03 in |
| Max. Pretravel | 0.16 in |
| Series | 9007CB |
| Differential Travel | 0.078 in |
| Length | 2-1/2 in |
| Contact Form | 2NO/2NC |
| Housing Material | Plastic |
| Standards | CE, CSA, UL Listed |
| Current Rating | 10 A |
| Mounting Dimension | 2.10" Centers |
| Includes | Acutuator |
| Watertight - Snap Action Switch | No |
| Height | 0.828 in |
| Type of Actuator | Rigid Roller Lever |
| Mounting Dimension - Snap Action Switch | 2.1 in (Centers) |
| Actuator Length | 1.65 in |
| Electrical Connection - Snap Action Switch | Screw |
| Voltage Rating | 600VAC |
| Terminal Type | Screw |
| Depth | 1.03 in |
| Operating Force | 8 oz |
| Operating Temp. Range | -13 Degrees to 185 Degrees F |
| Over Travel | 0.06 in |
| Material | Metal |
| DC Contact Rating | 0.1 A @ 250 V |
| Width | 0.95 in |
| AC Contact Rating | 0.6 A @ 600 V, 0.75 A @ 480 V, 1.5 A @ 240 V, 3 A @ 120 V |
| Manufacturer Warranty Length | 18 mo |
| Body Material | Cast Zinc |
| Roller Material | Metal |
| Center Mounting Hole Distance | 2.1 in |
| Operating Temperature - Maximum | 185 deg F |
| Roller Diameter | 0.47 in |
| Electrical Connection | Screw |
| Differential Travel - Maximum | 0.078 in |
| Differential Travel - Minimum | Not Applicable |
| Overall Width | 0.95 in |
| Operating Force - Minimum | Not Applicable |
| Body Height | 2-1/2 in |
| Operating Force - Maximum | 8 ozf |
| Pretravel | 0.16 in |
| Overall Depth | 2.54 in |
| Body Depth | 2.54 in |
| Body Width | 0.95 in |
| Operating Temperature - Minimum | -20 deg F |
| Overtravel | 0.06 in |
| Overall Height | 2-1/2 in |
| Actuator Style | Roller Lever |
| Lever Actuator Length | 1.65 in |
| Device Short Name | 9007AO/CO |
| Series Name | heavy duty |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| Ambient Air Temperature For Operation | -20-185°F |
| Movement Of Operating Head | linear |
| Operator Profile | plunger head |
| Terminals Description Iso N°1 | NO || NO || NC || NC |
| Positive Opening | without |
| [Ui] Rated Insulation Voltage | 600 V 3)UL 508 contact block || 600 VCSA C22.2 No 14 contact block |
| Type Of Approach | 2 directions, traverse approach |
| Type Of Operator | spring return roller lever plunger metal bracket + 0.47" roller |
| Fixing Mode | by the body |
| Number Of Poles | 2 |
| Nema Degree Of Protection | NEMA 1 Nema type 250 |
| Switch Actuation | by 30° cam |
| Contact Operation | snap action |
| Operator Material | cast zinc |
| Contacts Type And Composition | 2 DPDT-DB |
| Body Type | fixed |
| Ambient Air Temperature For Storage | -20-185°F |
| Number Of Steps | 1 |
| Contacts Material | silver contacts |
| Maximum Force For Tripping | 0.5 lbf |
| Product Or Component Type | snap limit switch |
| Minimum Force For Tripping | 0.5 lbf |
| [Ie] Rated Operational Current | 0.6 A 600 V AC, B600 NEMA rating designation || 0.75 A 480 V AC, B600 NEMA rating designation || 1.5 A 240 V AC, B600 NEMA rating designation || 3 A 120 V AC, B600 NEMA rating designation || 0.1 A 250 V DC || 0.2 A 125 V DC |
| Package Quantity | 1 |
