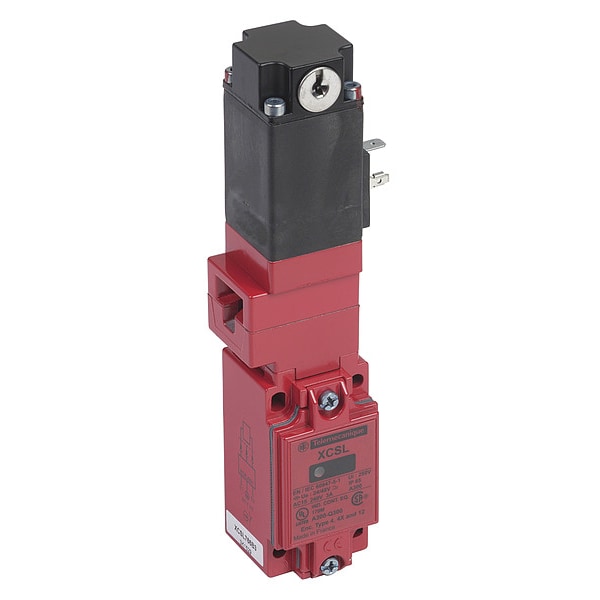

Interruptor de interbloqueo XCSL 300Vac 10As de Telemecanique Sensors. Garantiza un funcionamiento seguro y confiable en entornos industriales.
| Item | Safety Interlock Switch |
|---|---|
| Series | XCSL |
| Height | 7.64-7.64 in |
| Depth | 1.73 in |
| Contacts Type And Composition | 1 NO staggered || 2 NC |
| Enclosure Material | Metal |
| Enclosure Type | water resistant enclosure indoor/outdoor || dustproof enclosure indoor/outdoor || ice/sleet proof enclosure indoor/outdoor |
| [Us] Rated Supply Voltage | 24 V DC |
| Line Rated Current | 10 A |
| Nema Degree Of Protection | NEMA 1/2/3/4/12 |
| Number Of Poles | 3 |
| Pilot Light | LED orange |
| Key Locking Position | front |
| Ambient Air Temperature For Operation | -13-158°F |
| Actuator | Key |
| Ip Degree Of Protection | IP67 |
| Device Short Name | XCSL |
| Permissible Voltage | 300 V AC |
| Installation Direction | electromagnet connection right || actuator supply left |
| Contact Operation | slow-break, break before make |
| Package Quantity | 1 |
