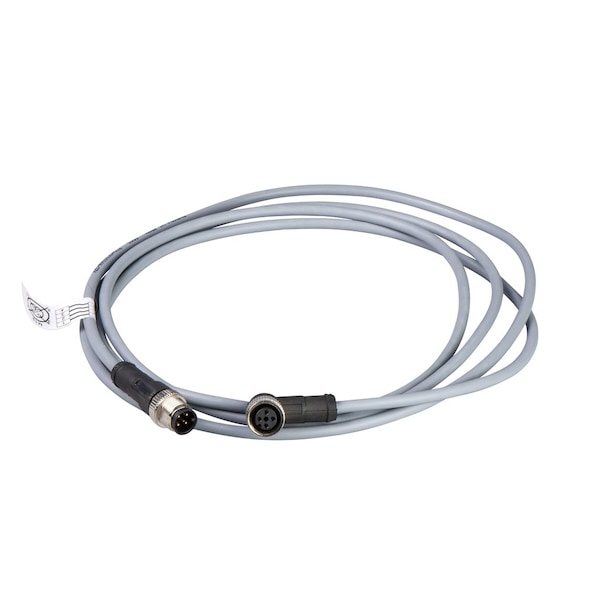

Jumper de PVC de 4 pines M12 recto M a M12 hembra de 90 grados 2 metros
| Item | Jumper Cable |
|---|---|
| Cable Length | 2 m |
| Number of Pins | 5 |
| Max. Voltage | 250VAC/300VDC |
| Temp. Range | -25 to 80 deg C |
| Features | Mercury Free |
| IP Rating | IP67, IP65 |
| Max. Amps | 3 |
| For Use With | Machines In Non Demanding Environments And Subject Only To Moderate Mechanical Stress |
| Accessory / Separate Part Category | cabling accessory |
| Collar Material | metal |
| Jumper Cable End 2 | M12 female 4 pins elbowed screw-on |
| Jumper Cable End 1 | M12 male 4 pins straight screw-on |
| Ip Degree Of Protection | IP67 || IP65 |
| Product Certifications | cULus |
| Cable Composition | 4 x 0.25 mm² |
| Cable Outer Diameter | 4.6 mm |
| Line Rated Current | 3 A |
| Accessory / Separate Part Type | jumper cable |
| Maximum Resistance Across Terminals | 5000 mOhm |
| Insulation Resistance | >= 1000 MOhm |
| Ambient Air Temperature For Storage | -25-80°C |
| Ambient Air Temperature For Operation | -25-80°C static |
| [Ue] Rated Operational Voltage | 250 V AC || 300 V DC |
| Wire Insulation Material | PVC |
| Package Quantity | 1 |
