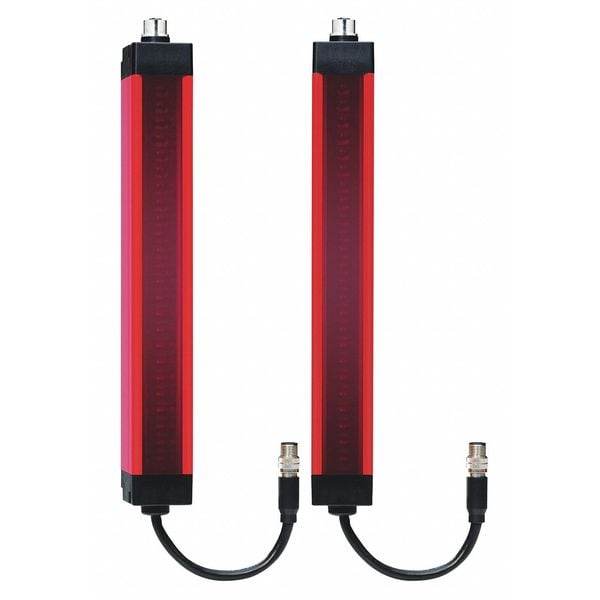

Cortina de luz, protegida con una altura de 26.8 pulgadas.
| Item | Light Curtain |
|---|---|
| Max. Sensing Distance | 65.6 ft |
| Input Voltage | 24V DC |
| Safety Output Ratings | 625m A @ 24V DC |
| IP Rating | 65 |
| Color | Red |
| Housing Material | Aluminum |
| Width | 2.42 in |
| NEMA Rating | Not Rated |
| Protected Height | 26.8 in |
| Depth | 1.93 in |
| Number of Beams | 34 |
| Beam Spacing | 0.787 in |
| Light Source | 880nm IR LED |
| Effective Aperture Angle | 2.5 deg @ 3 m |
| Includes | (2) Sets of (2) Brackets with Mounting Hardware |
| Cable Connection Transmitter | M12, 4 Pin |
| Auxillary Output Circuit Type | PNP, NPN |
| Reset Type | NC |
| Overall Height | 31-1/2 in |
| Response Time | 23 msec |
| Auxiliary Contact Rating | 100 mA @ 24V DC |
| Standards | EN/IEC 61496-1 and EN/IEC 61496-2 |
| Cable Length | 4.33 in |
| Number of Aux. Outputs | 1 |
| Operating Temp. Range | 14 to 131 deg F |
| Cable Connection Receiver | M12, 4 Pin |
| Package Quantity | 1 |
