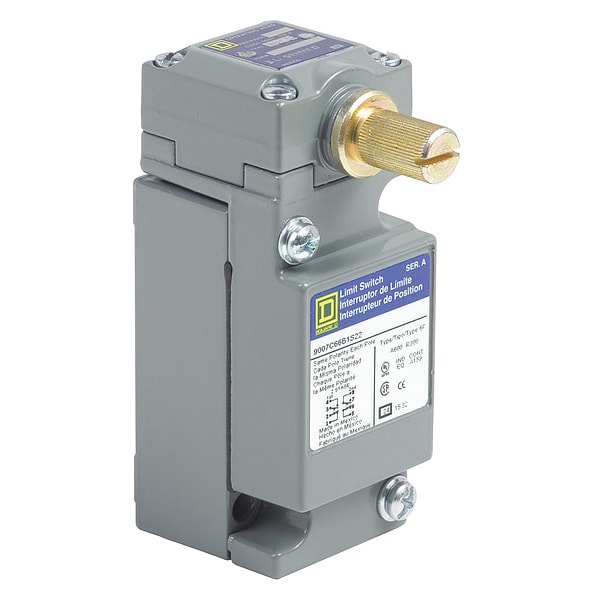

Interruptor de límite, 2 normalmente abierto/2 normalmente cerrado; Forma ZZ, 10A @ 600V CA.
| Item | Limit Switch |
|---|---|
| Contact Form- Switches | 2 NO/2 NC; Form ZZ |
| AC Contact Rating - Limit Switch | 10 A @ 600 V |
| DC Contact Rating - Limit Switch | 10 A @ 600 V |
| Amps | 10 |
| Certification | CSA || CE || UL Listed |
| Operating Temp. Range | -20-185 °F |
| Actuator Style | Rotary Lever |
| Body Material | zinc alloy |
| Series | 9007C |
| Contact Form | Form ZZ |
| Contact Material | silver alloy |
| Contact Action | snap action |
| Actuation Type | CCW |
| Head Type | turret head rotary lever |
| Operating Force - Maximum | 4 lbf |
| Body Configuration | Plug-In |
| Total Travel | 90 Degrees |
| Type Of Operator | spring return lever arm first stage : 10° second stage : 2.5° to be ordered separately || spring return lever arm standard pre-travel |
| Package Quantity | 1 |
