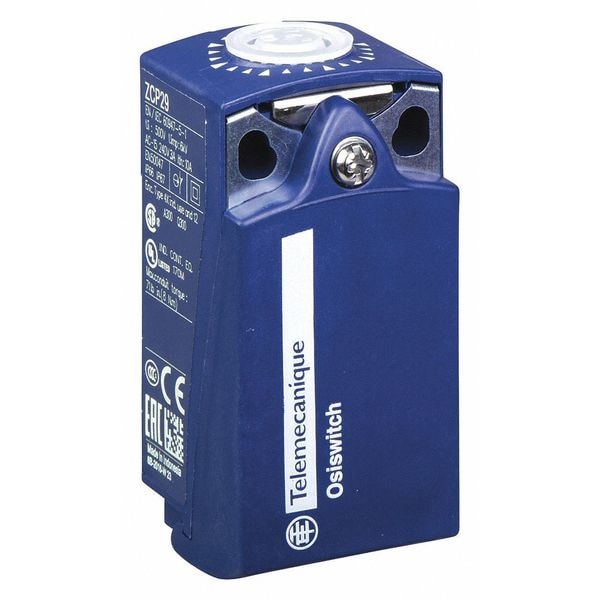

Interruptor de límite de plástico de 240Vac 10Amp de Telemecanique Sensors, ideal para control de dispositivos eléctricos.
| Item | Limit Switch Body |
|---|---|
| Amps | 10 |
| Body Material | Plastic |
| DC Contact Rating | 0.1 A @ 250 V |
| Depth | 30 mm |
| Contact Form | 2NC |
| Height | 65-65 mm |
| AC Contact Rating | 1.5 A @ 240 V |
| Electrical Connection | Screw Clamp Terminals |
| Material | Plastic |
| Width | 31 mm |
| IP Rating | IP67, IP66 |
| Electrical Durability | 5000000 cycles, DC-13 120 V, 1 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| NEMA Enclosure Rating | 1, 12, 4 |
| Mounting Hole Vertical Center to Center Distance | Not Applicable |
| Compatible with Manufacturer Model Number | ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2 |
| Indicating Light | No Indicating Light Included |
| Number of Mounting Holes | 2 |
| Mounting Hole Diameter | 0.17 in |
| Mounting Hole Horizontal Center to Center Distance | 21 mm |
| Compatible with Series | XCKP |
| Body Configuration | Non Plug-In |
| Product Compatibility | XCKP |
| Device Short Name | ZCP |
| Contacts Type And Composition | 2 NC |
| Series Name | Standard compact |
| [Ui] Rated Insulation Voltage | 300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14 |
| Contact Code Designation | B300, AC-15 (Ue = 240 V), Ie = 1.5 A EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A |
| Product Or Component Type | limit switch body |
| Associated Head | ZCE08 || ZCE11 || ZCEH2 || ZCE10 || ZCE66 || ZCEH0 || ZCE28 || ZCE27 || ZCE63 || ZCE14 || ZCE06 || ZCE09 || ZCE67 || ZCE24 || ZCE21 || ZCE07 || ZCE62 || ZCE02 || ZCE29 || ZCE65 || ZCE13 || ZCE05 || ZCE01 || ZCE64 |
| Positive Opening | with |
| Design | compact |
| Ambient Air Temperature For Storage | -40-70°C |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60664 || 6 kV IEC 60947-1 |
| Minimum Actuation Speed | 0.01 m/sec |
| Number Of Poles | 2 |
| Contact Operation | snap action |
| Contacts Insulation Form | Zb |
| Short-Circuit Protection | 6 A cartridge fuse gG |
| Body Type | fixed |
| Ambient Air Temperature For Operation | -25-70°C |
| Contacts Material | silver plated contacts |
| Associated Connection Component | ZCPEN12 || ZCPEG11 || ZCPEP16 || ZCPEP20 || ZCPEG13 || ZCPEF12 |
| Compatible Manufacturer Part Number | ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2 |
| Compatible Manufacturer Model Number | ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2 |
| Compatible with Mfr. Model No. | ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2 |
| For Use with Mfr Model Number | ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2 |
| For Use With Mfr. Model Number | ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2 |
| Package Quantity | 1 |
