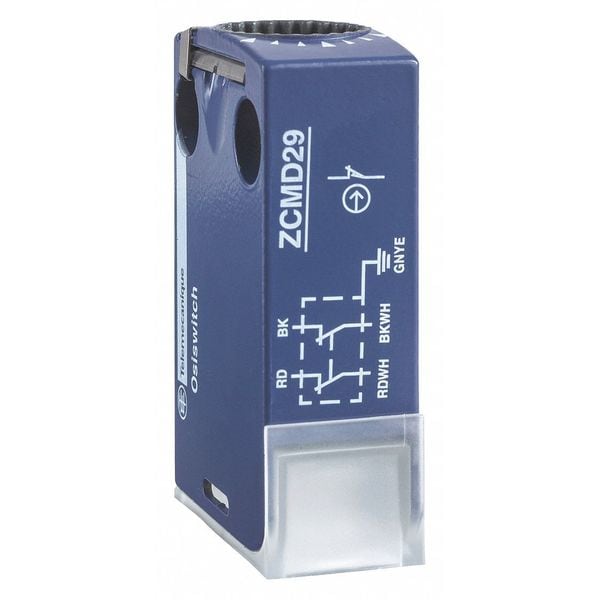

Interruptor de límite 24Vac 4A de metal Zcmd.
| Item | Limit Switch Body |
|---|---|
| Contact Form | 1NO/1NC |
| Depth | 16 mm |
| Height | 50-50 mm |
| AC Contact Rating | 3 A @ 50 V |
| Width | 30 mm |
| DC Contact Rating | 0.22 A @ 50 V |
| Body Material | zamak |
| Material | Metal |
| Electrical Connection | 5-Pin M12 Male Connector |
| IP Rating | IP66, IP67, IP68 |
| Electrical Durability | 5000000 cycles, DC-13 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Contacts Type And Composition | 1 NC + 1 NO |
| Number Of Poles | 2 |
| Contacts Material | silver plated contacts |
| Device Short Name | ZCMD |
| Maximum Resistance Across Terminals | 25 mOhm IEC 60255-7 category 3 |
| Design | miniature |
| Body Type | fixed |
| Series Name | standard format |
| [Ie] Rated Operational Current | 0.22 A 50 V, DC-13 EN/IEC 60947-5-1 appendix A || 3 A 50 V, AC-15 EN/IEC 60947-5-1 appendix A |
| Product Compatibility | XCMD |
| Associated Head | ZCE66 || ZCEF2 || ZCE14 || ZCE62 || ZCE06 || ZCE09 || ZCE21 || ZCE28 || ZCE27 || ZCE64 || ZCE65 || ZCEG1 || ZCE10 || ZCE11 || ZCE01 || ZCE29 || ZCE67 || ZCE24 || ZCE07 || ZCE13 || ZCE02 || ZCE63 || ZCEF0 || ZCE08 |
| Product Or Component Type | limit switch body |
| [Ithe] Conventional Enclosed Thermal Current | 4 A |
| Minimum Actuation Speed | 0.01 m/min |
| Positive Opening | with |
| [Ui] Rated Insulation Voltage | 60 V 3)IEC 60947-5-1 |
| Contacts Insulation Form | Zb |
| Short-Circuit Protection | 4 A cartridge fuse gG |
| [Uimp] Rated Impulse Withstand Voltage | 0.8 kV IEC 60664 || 0.8 kV IEC 60947-1 |
| Ambient Air Temperature For Storage | -40-70°C |
| Contact Operation | snap action |
| Mounting Hole Vertical Center to Center Distance | Not Applicable |
| Body Configuration | Non Plug-In |
| NEMA Enclosure Rating | 1, 12, 13, 2, 4 |
| Mounting Hole Diameter | 0.17 in |
| Mounting Hole Horizontal Center to Center Distance | 21 mm |
| Number of Mounting Holes | 2 |
| Indicating Light | No Indicating Light Included |
| Compatible with Series | XCMD |
| Compatible with Manufacturer Model Number | ZCE01, ZCE02, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEF0, ZCEF2, ZCEG1 |
| Compatible Manufacturer Part Number | ZCE01, ZCE02, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEF0, ZCEF2, ZCEG1 |
| Compatible Manufacturer Model Number | ZCE01, ZCE02, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEF0, ZCEF2, ZCEG1 |
| Package Quantity | 1 |
