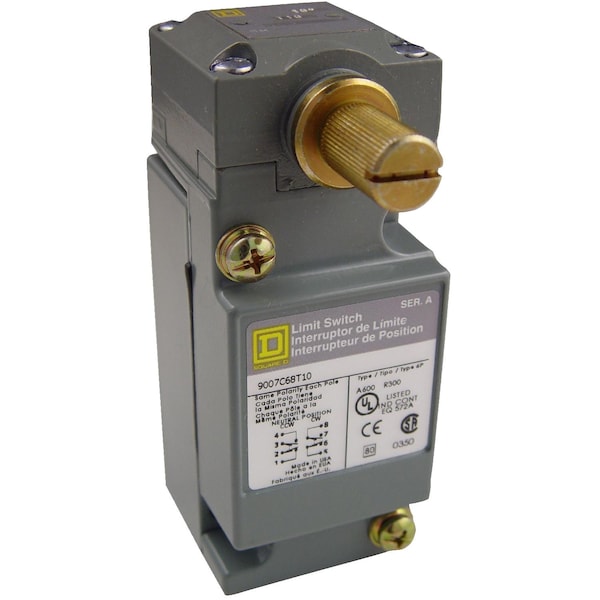

Interruptor de límite, 2(NC-NO); Tipo Z, 10A @ 600V CA
| Item | Limit Switch |
|---|---|
| Contact Form- Switches | 2(NC-NO); Form Z |
| AC Contact Rating - Limit Switch | 10 A @ 600 V |
| DC Contact Rating - Limit Switch | 10 A @ 600 V |
| Amps | 10 |
| Electrical Connection | screw-clamp terminals AWG 22...AWG 12), 1-2 |
| Width | 1.55 in |
| Body Height - Limit Switch | 4.02 in |
| Body Style (Limit Switch) | plug-in body |
| Movement | rotary |
| Special Features | lateral approach, 2 directions |
| Series | 9007C |
| Head Material | zinc |
| Body Material | zinc, metal |
| Contact Form | Form Z |
| NEMA Rating | NEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 6 Nema type 250 || NEMA 6P Nema type 250 || NEMA 12 Nema type 250 || NEMA 13 Nema type 250 |
| Body Depth - Limit Switch | 2-1/2 in |
| Contact Material | silver contacts |
| Operating Temp. Range | -20-185 °F standard environment |
| IP Rating | IP67 conforming to IEC 60529 |
| Standards | 2.5 kV AC 1 min CE || 2.2 kV AC 1 min UL || 2.64 kV AC 1 s CSA |
| Actuation Type | CW and CCW || from left and right |
| Weight | 1.25 lb |
| Mechanical Durability | 10,000,000 cycle |
| Contact Action | snap action |
| Shock Resistance | 60 gn 9 ms IEC 60068-2-27 |
| Min. Actuation Velocity Horizontal | 90 ft/min with 45° cam angle, levers only || 130 ft/min with 30° cam angle, levers only |
| Head Type | rotary head |
| Short Circuit Protection | 10 A CC non-time delay |
| Vibration Resistance | 25 gn 10-150 Hz)IEC 60068-2-6 |
| Electrical Durability | 1000000 cycles |
| Pretravel | 5 Degrees |
| Body Configuration | Plug-In |
| Operating Force - Maximum | 4 lbf |
| Includes Actuator | No Actuator Included |
| Total Travel | 90 Degrees |
| Type Of Operator | zinc spring return without operating lever L100/300 lever |
| Number Of Poles | 2 |
| Package Quantity | 1 |
