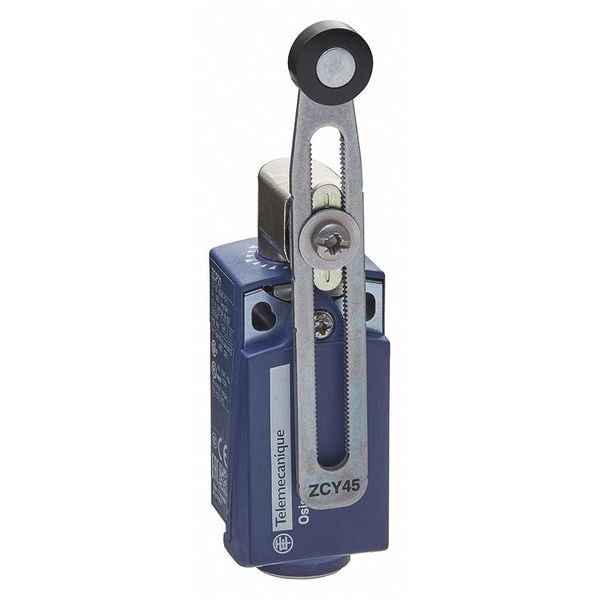

Interruptor de límite, Palanca de rodillo ajustable, Giratorio, 1NC/1NO, 10A @ 240V AC, Ubicación del actuador: Lateral
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Rotary |
| Actuator Style - Limit Switch | Adjustable Roller Lever, Rotary |
| Contact Form- Switches | 1NC/1NO |
| Actuator Location - Limit Switch | Side |
| AC Contact Rating - Limit Switch | 10 A @ 240 V |
| DC Contact Rating - Limit Switch | 10 A @ 240 V |
| Body Style - Limit Switch | Miniature |
| Mounting - Limit Switch | Surface |
| Wiring Entry | G11 Metric |
| Actuator Style | Adjustable Roller Lever |
| Body Style (Limit Switch) | Miniature |
| Operating Force | 0.9 in-lb |
| DC Contact Rating | 10 A @ 240 V |
| Series | XCKP |
| Stem Thread - Limit Switch | No Stem |
| Arm Material | Zinc |
| Basic Actuator Style (Limit Switch) | Rotary |
| Width | 1.22 in |
| Boot Sealed Actuator (Limit Switch) | No |
| Mounting Hole - Limit Switch | (2) 0.17 in dia |
| Actuator Location | Side |
| Mounting Hole Pattern - Limit Switch | 2 Hole (Horizontal) |
| Body Width - Limit Switch | 1.22 in |
| AC Contact Rating | 10 A @ 240 V |
| Amps | 10 |
| Body Depth - Limit Switch | 1.18 in |
| Boot Sealed Actuator - Limit Switch | No |
| Height | 2.56 in |
| Roller Material | Thermoplastic |
| Contact Form - Limit Switch | 1NO, 1NC |
| Mounting Hole Spacing - Limit Switch | 0.75 in |
| Actuator Length - Limit Switch | 1.30 in to 3.29 in |
| IP Rating | 67 |
| Body Height - Limit Switch | 2.56 in |
| Contact Form | 1NC, 1NO |
| NEMA Rating | 1, 12, 13, 2, 4, 6 |
| Actuator Length | 1.30" to 3.29" |
| Body Material | plastic |
| Depth | 1.18 in |
| Movement | CCW, CW |
| Voltage Rating | 240VAC/DC |
| Limit Switch Style | General Purpose Limit Switch |
| Electrical Connection | Screw Terminals |
| Travel | 90 Degrees |
| Standards | CE, CSA, UL |
| Operating Temp. Range | -13 to 158 deg F |
| Actuator Style (Limit Switch) | Rotary, Adjustable Roller Lever |
| Roller Dia. | 0.63 in |
| Actuator Location (Limit Switch) | Side |
| Roller Width | 0.22 in |
| Certification | UL || CSA || CCC |
| Special Features | lateral approach, 2 directions |
| Head Material | zamak |
| Contact Action | snap action |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Short Circuit Protection | 10 A cartridge fuse gG |
| Mechanical Durability | 10,000,000 cycle |
| Head Type | rotary head |
| Electrical Durability | 5000000 cycles, DC-13, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Min. Actuation Velocity Horizontal | 1.5 m/s |
| Weight | 0.145 kg |
| Vibration Resistance | 25 gn 10-500 Hz)IEC 60068-2-6 |
| Actuation Type | by 30° cam |
| Number Of Poles | 2 |
| Type Of Operator | spring return roller lever thermoplastic variable length |
| Mounting Style | Surface |
| Directional Movement | CW, CCW |
| Overall Width | 1.22 in |
| Roller Diameter | 0.63 in |
| Body Height | 2.56 in |
| Operating Temperature - Minimum | -13 deg F |
| Wireless Network Interface | Not Applicable |
| Operating Temperature - Maximum | 158 deg F |
| Manufacturer Warranty Length | 18 mo |
| Body Width | 1.22 in |
| Resistance Properties | Shock Resistant, Vibration Resistant |
| Overall Depth | 1.18 in |
| Overall Height | 2.56 in |
| Mounting Hole Horizontal Center to Center Distance | 19 mm |
| Body Depth | 1.18 in |
| Operating Torque - Maximum | 0.9 in-lb |
| Boot Sealed Actuator | No Boot Included |
| Mounting Hole Diameter | 0.17 in |
| NEMA Enclosure Rating | 4, 13, 1, 6, 12, 2 |
| Number of Mounting Holes | 2 |
| Package Quantity | 1 |
