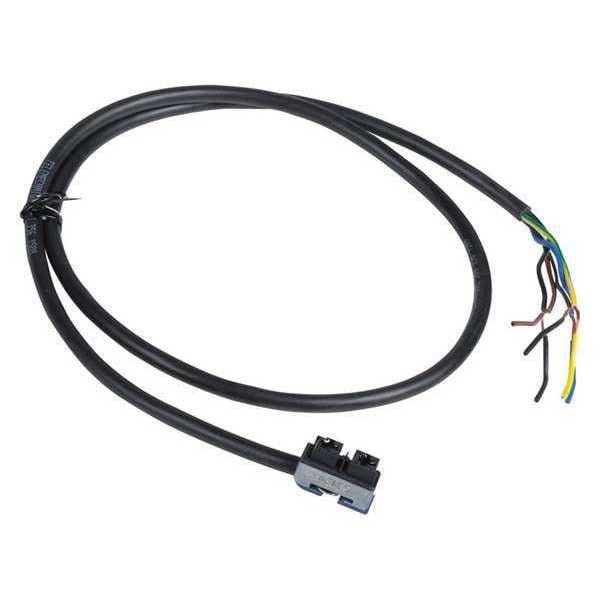

Base de Interruptor de Límite, 1NO/1NC, Cable de 1m
| Item | Pre-Cabled Connection |
|---|---|
| For Use With | XCMD Series Limit Switches |
| Contact Form | 1NO/1NC |
| Cable Length | 1 m |
| Standards | EU RoHS, Pro-Active Compliance |
| Electrical Connection | Snap-In Base with 1m PVR Cable |
| Material | Not Applicable |
| IP Rating | 66, 67 |
| Product Compatibility | XCMD21 |
| Contacts Type And Composition | 1 NC + 1 NO |
| Component Name | ZCMC |
| Associated Body | ZCMD21 |
| Wire Insulation Material | PvR |
| Product Or Component Type | pre-cabled connection |
| Number Of Poles | 2 |
| Contact Operation | snap action |
| Product Type | Limit Switch Base |
| Number of Mounting Holes | Not Applicable |
| Mounting Hole Diameter | Not Applicable |
| Conduit Connection Type | Pre-Wired |
| Conduit Connection Size | Not Applicable |
| NEMA Enclosure Rating | Not Applicable |
| Mounting Hole Vertical Center to Center Distance | Not Applicable |
| Body Configuration | Not Applicable |
| Mounting Hole Horizontal Center to Center Distance | Not Applicable |
| Mounting Style | Diagonal Side |
| Compatible with Manufacturer Model Number | ZCMD21 |
| Compatible with Series | XCMD21 |
| Compatible Manufacturer Part Number | ZCMD21 |
| Compatible Manufacturer Model Number | ZCMD21 |
| Package Quantity | 1 |
