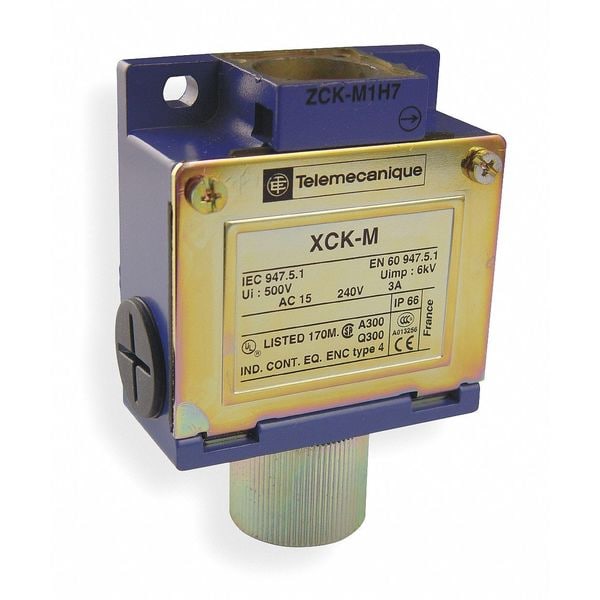

Cuerpo de Interruptor de Límite, 1NO/1NC, 3A @ 240V
| Item | Limit Switch Body |
|---|---|
| For Use With | XCKM Series Limit Switches |
| Contact Form | 1NO/1NC |
| Depth | 30 mm |
| Height | 64-64 mm |
| AC Contact Rating | 3 A @ 240 V |
| Width | 64 mm |
| DC Contact Rating | 0.27 A @ 250 V |
| IP Rating | IP66 |
| Standards | CE, CSA, EN/IEC 60947-5-1, UL Listed |
| NEMA Rating | 1, 12, 2, 3, 4 |
| Operating Temp. | -13 to 158 deg F |
| Electrical Connection | Screw Clamp Terminals |
| Body Material | Metal |
| Material | Metal |
| Ambient Air Temperature For Storage | -40-70°C |
| [Ui] Rated Insulation Voltage | 500 V 3)IEC 60947-1 contact block || 300 VCSA C22.2 No 14 contact block || 300 VUL 508 contact block |
| Cable Entry | 3 entries tapped for Pg 11 cable gland |
| Contact Operation | snap action |
| Terminals Description Iso N°1 | NC || NO |
| Device Short Name | ZCKM |
| Number Of Poles | 2 |
| Product Or Component Type | limit switch body |
| Maximum Resistance Across Terminals | 0.25 mOhm IEC 60255-7 category 3 |
| Contacts Material | silver plated contacts |
| Ambient Air Temperature For Operation | -25-70°C |
| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A |
| Positive Opening | with |
| Series Name | standard format |
| Number Of Steps | 1 1 position |
| Product Compatibility | XCKM |
| Environmental Characteristic | standard environment |
| Ip Degree Of Protection | IP66 |
| Body Type | fixed |
| Short-Circuit Protection | 10 A cartridge fuse gG |
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| Contacts Type And Composition | 1 NC + 1 NO |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60664 || 6 kV IEC 60947-1 |
| Electrical Durability | 5000000 cycles, DC-13 120 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 13 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 9 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Ik Degree Of Protection | IK05 |
| Minimum Actuation Speed | 0.01 m/min |
| Associated Head | ZCKD08 || ZCKD06 || ZCKD219 || ZCKD41 || ZCKD02 || ZCKD81 || ZCKD05 || ZCKD109 || ZCKD16 || ZCKD23 || ZCKD91 || ZCKD029 || ZCKD17 || ZCKD59 || ZCKD15 || ZCKD21 || ZCKD239 || ZCKD10 |
| Terminals Description Iso N°1 | NC || NO |
| Mounting Hole Horizontal Center to Center Distance | 41 mm |
| Operating Temperature - Maximum | 158 deg F |
| Mounting Hole Vertical Center to Center Distance | Not Applicable |
| Overall Height | 2.52 in |
| Compatible with Manufacturer Model Number | ZCKD02, ZCKD029, ZCKD05, ZCKD06, ZCKD08, ZCKD10, ZCKD109, ZCKD15, ZCKD16, ZCKD17, ZCKD21, ZCKD219, ZCKD23, ZCKD239, ZCKD41, ZCKD59, ZCKD81, ZCKD91 |
| Overall Width | 2.52 in |
| Body Configuration | Non Plug-In |
| Overall Depth | 1.18 in |
| Manufacturer Warranty Length | 18 mo |
| Mounting Hole Diameter | 0.2 in |
| Number of Mounting Holes | 2 |
| NEMA Enclosure Rating | 1, 12, 2, 3, 4 |
| Indicating Light | No Indicating Light Included |
| Compatible with Series | XCKM |
| Operating Temperature - Minimum | -13 deg F |
| Compatible Manufacturer Part Number | ZCKD02, ZCKD029, ZCKD05, ZCKD06, ZCKD08, ZCKD10, ZCKD109, ZCKD15, ZCKD16, ZCKD17, ZCKD21, ZCKD219, ZCKD23, ZCKD239, ZCKD41, ZCKD59, ZCKD81, ZCKD91 |
| Compatible Manufacturer Model Number | ZCKD02, ZCKD029, ZCKD05, ZCKD06, ZCKD08, ZCKD10, ZCKD109, ZCKD15, ZCKD16, ZCKD17, ZCKD21, ZCKD219, ZCKD23, ZCKD239, ZCKD41, ZCKD59, ZCKD81, ZCKD91 |
| Package Quantity | 1 |
