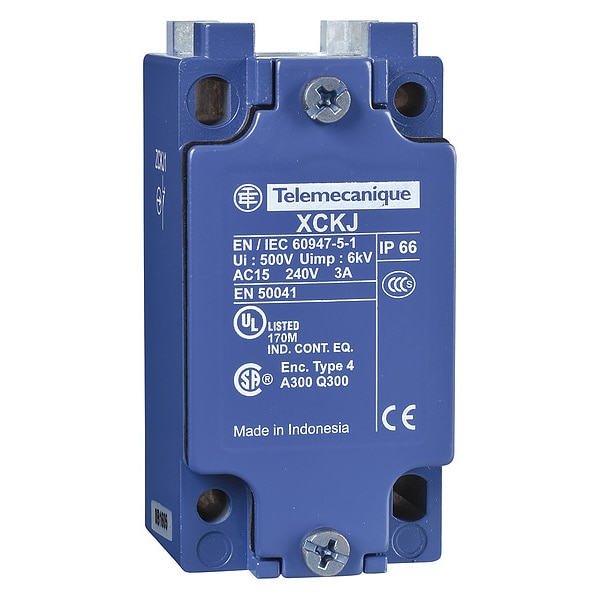

Cuerpo del interruptor de límite 300Vca 10Axck
| Item | Limit Switch Body |
|---|---|
| Contact Form | 1NO/1NC |
| Depth | 36 mm |
| Height | 84-84 mm |
| AC Contact Rating | 3 A @ 240 V |
| Width | 43 mm |
| DC Contact Rating | 0.27 A @ 250 V |
| Body Material | Metal |
| IP Rating | IP66 |
| Material | Metal |
| Electrical Connection | Screw Clamp Terminals |
| Mounting Hole Vertical Center to Center Distance | 60 mm |
| Number of Mounting Holes | 2 |
| Mounting Hole Diameter | 0.21 in |
| Mounting Hole Horizontal Center to Center Distance | 30 mm |
| Compatible with Manufacturer Model Number | ZCKE05, ZCKE06, ZCKE08, ZCKE21, ZCKE23, ZCKE61, ZCKE619, ZCKE62, ZCKE629, ZCKE63, ZCKE64, ZCKE65, ZCKE66, ZCKE67 |
| Body Configuration | Non Plug-In |
| Compatible with Series | XCKJ |
| Indicating Light | No Indicating Light Included |
| NEMA Enclosure Rating | 1, 12, 2, 3, 4 |
| Electrical Durability | 5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60664 || 6 kV IEC 60947-1 |
| Cable Entry | 1 entry tapped for M20 x 1.5 cable gland |
| Number Of Poles | 2 |
| Contacts Type And Composition | 1 NC + 1 NO |
| Positive Opening | with |
| Product Compatibility | XCKJ |
| Product Or Component Type | limit switch body |
| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A |
| Ambient Air Temperature For Operation | 10-120°C high temperature |
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| Series Name | standard format |
| Contacts Material | silver plated contacts |
| Terminals Description Iso N°1 | NC || NO || NO || NC |
| Minimum Actuation Speed | 0.01 m/min |
| Ambient Air Temperature For Storage | 10-120°C |
| Contact Operation | snap action |
| Associated Head | ZCKE61 || ZCKE05 || ZCKE06 || ZCKE67 || ZCKE08 || ZCKE21 || ZCKE65 || ZCKE629 || ZCKE62 || ZCKE63 || ZCKE66 || ZCKE64 || ZCKE23 || ZCKE619 |
| Device Short Name | ZCKJ |
| Short-Circuit Protection | 10 A cartridge fuse gG |
| Body Type | fixed |
| Maximum Resistance Across Terminals | 0.25 mOhm IEC 60255-7 category 3 |
| Environmental Characteristic | high temperature |
| Ip Degree Of Protection | IP66 |
| [Ui] Rated Insulation Voltage | 500 V 3)IEC 60947-1 contact block || 300 VCSA C22.2 No 14 contact block || 300 VUL 508 contact block |
| Ik Degree Of Protection | IK07 |
| Number Of Steps | 1 1 position |
| Compatible Manufacturer Part Number | ZCKE05, ZCKE06, ZCKE08, ZCKE21, ZCKE23, ZCKE61, ZCKE619, ZCKE62, ZCKE629, ZCKE63, ZCKE64, ZCKE65, ZCKE66, ZCKE67 |
| Compatible Manufacturer Model Number | ZCKE05, ZCKE06, ZCKE08, ZCKE21, ZCKE23, ZCKE61, ZCKE619, ZCKE62, ZCKE629, ZCKE63, ZCKE64, ZCKE65, ZCKE66, ZCKE67 |
| Package Quantity | 1 |
