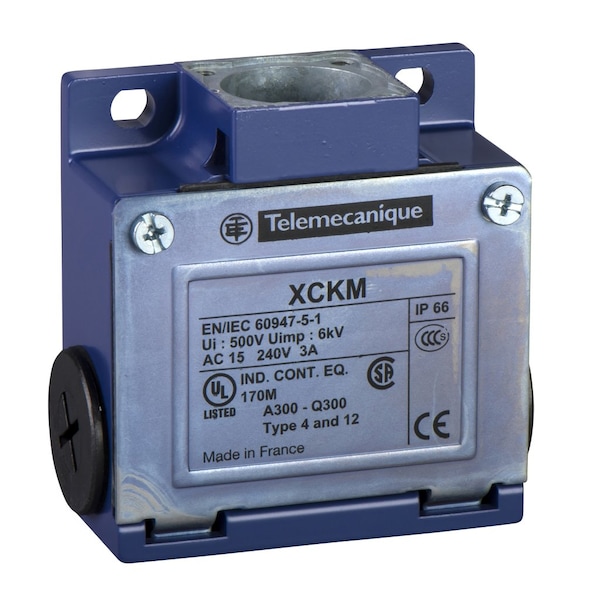

Cuerpo de interruptor de límite ZCKM-2NC1NO de acción rápida.
| Item | Limit switch body ZCKM - 2NC+1NO - snap |
|---|---|
| Depth | 36 mm |
| Height | 73-73 mm |
| Width | 40 mm |
| Electrical Connection | screw-clamp terminals 1 x 0.34 to 2 x 0.75 mm² |
| Body Material | Metal |
| Electrical Durability | 5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Environmental Characteristic | standard environment |
| Contacts Type And Composition | 2 NC + 1 NO |
| Series Name | standard format |
| Number Of Steps | 1 1 position |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60664 || 6 kV IEC 60947-1 |
| Contact Operation | snap action |
| Ik Degree Of Protection | IK03 |
| Positive Opening | with |
| [Ui] Rated Insulation Voltage | 400 V 3)IEC 60947-1 contact block || 300 VCSA C22.2 No 14 contact block || 300 VUL 508 contact block |
| Ambient Air Temperature For Storage | -40-70°C |
| Body Type | fixed |
| Maximum Resistance Across Terminals | 0.25 mOhm IEC 60255-7 category 3 |
| Product Compatibility | XCKM |
| Minimum Actuation Speed | 0.01 m/min |
| [Ie] Rated Operational Current | 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1 appendix A || 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 appendix A |
| Associated Head | ZCKD59 || ZCKD91 || ZCKD10 || ZCKD109 || ZCKD239 || ZCKD029 || ZCKD17 || ZCKD08 || ZCKD81 || ZCKD219 || ZCKD41 || ZCKD05 || ZCKD15 || ZCKD21 || ZCKD23 || ZCKD02 || ZCKD06 || ZCKD16 |
| Device Short Name | ZCKM |
| Cable Entry | 3 entries tapped for M20 x 1.5 cable gland |
| Ip Degree Of Protection | IP65 |
| Number Of Poles | 3 |
| Contacts Material | silver plated contacts |
| Terminals Description Iso N°1 | NO || NC || NC || NO |
| Ambient Air Temperature For Operation | -25-70°C standard environment |
| [Ithe] Conventional Enclosed Thermal Current | 6 A |
| Short-Circuit Protection | 10 A cartridge fuse gG |
| Product Or Component Type | limit switch body |
| Package Quantity | 1 |
