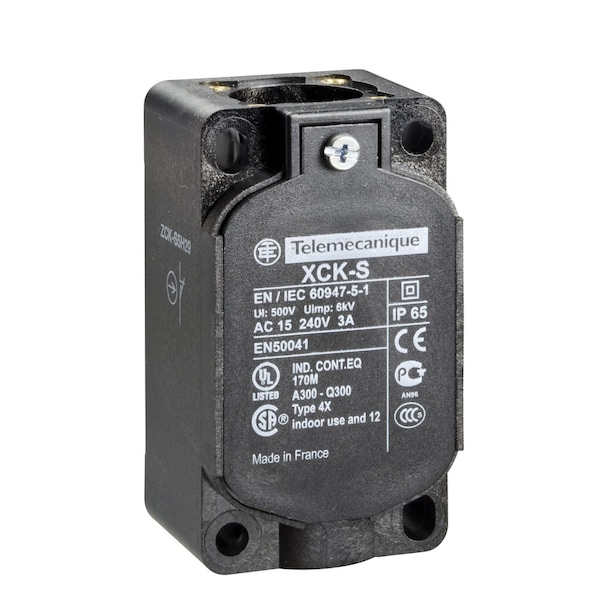

Cuerpo de interruptor de límite ZCKS-2C / O-acción rápida.
| Item | Limit switch body ZCKS - 2C/O - snap act |
|---|---|
| Depth | 36 mm |
| Height | 73-73 mm |
| Width | 40 mm |
| Electrical Connection | screw-clamp terminals 1 x 0.75 to 2 x 1.5 mm² |
| Body Material | Plastic |
| Electrical Durability | 5000000 cycles, DC-13 120 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 13 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 9 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Maximum Resistance Across Terminals | 0.25 mOhm IEC 60255-7 category 3 |
| Ambient Air Temperature For Operation | -25-70°C standard environment |
| Ip Degree Of Protection | IP65 |
| Contact Operation | snap action |
| Product Compatibility | XCKS |
| Ambient Air Temperature For Storage | -40-70°C |
| Body Type | fixed |
| Terminals Description Iso N°1 | NC || NC |
| Product Or Component Type | limit switch body |
| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A |
| Contacts Material | silver plated contacts |
| Environmental Characteristic | standard environment |
| Positive Opening | without |
| Number Of Steps | 1 1 position |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60664 || 6 kV IEC 60947-1 |
| Number Of Poles | 2 |
| Ik Degree Of Protection | IK03 |
| Short-Circuit Protection | 10 A cartridge fuse gG |
| Contacts Type And Composition | O, 2 C |
| Cable Entry | 1 entry tapped for Pg 13.5 cable gland |
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| Minimum Actuation Speed | 0.01 m/min |
| Device Short Name | ZCKS |
| Series Name | standard format |
| [Ui] Rated Insulation Voltage | 500 V 3)IEC 60947-1 contact block || 300 VCSA C22.2 No 14 contact block || 300 VUL 508 contact block |
| Associated Head | ZCKD08 || ZCKD39 || ZCKD019 || ZCKD01 || ZCKD05 || ZCKD34 || ZCKD33 || ZCKD81 || ZCKD41 || ZCKD029 || ZCKD49 || ZCKD54 || ZCKD31 || ZCKD59 || ZCKD91 || ZCKD02 || ZCKD55 || ZCKD06 |
| Package Quantity | 1 |
