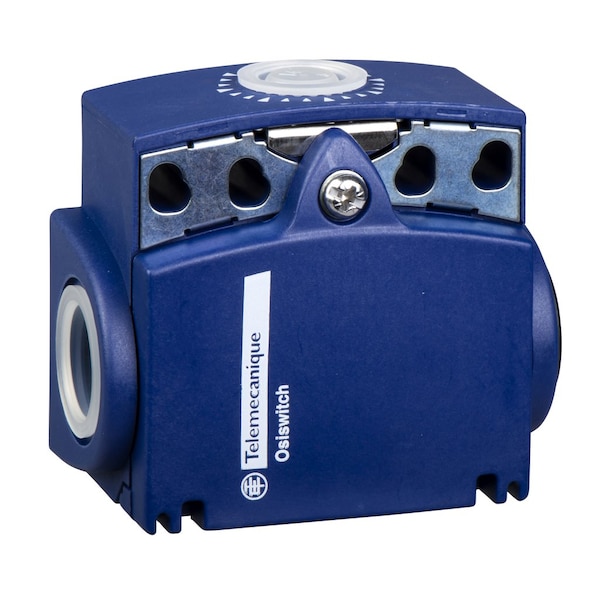

Cuerpo de interruptor de límite ZCT-compact-1NC1N
| Item | Limit switch body ZCT - compact - 1NC+1N |
|---|---|
| Depth | 30 mm |
| Height | 51-51 mm |
| Width | 58 mm |
| Electrical Connection | screw-clamp terminals 1 x 0.34 to 2 x 1.5 mm² |
| Body Material | Plastic |
| Electrical Durability | 5000000 cycles, DC-13 120 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 13 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 9 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Contact Operation | snap action |
| Ambient Air Temperature For Operation | -25-70°C |
| Device Short Name | ZCT |
| Product Compatibility | XCKT |
| Design | compact |
| Body Type | fixed |
| Product Or Component Type | limit switch body |
| Contacts Insulation Form | Zb |
| [Ui] Rated Insulation Voltage | 300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14 |
| Contact Code Designation | B300, AC-15 (Ue = 240 V), Ie = 1.5 A EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A |
| Cable Entry | 2 entries tapped for M16 x 1.5 cable gland 4-8 mm |
| Minimum Actuation Speed | 0.01 m/sec |
| Series Name | Standard compact |
| Number Of Poles | 2 |
| Associated Head | ZCE05 || ZCE02 || ZCE29 || ZCE13 || ZCE63 || ZCEH2 || ZCE01 || ZCE62 || ZCEH0 || ZCE66 || ZCE21 || ZCE07 || ZCE08 || ZCE24 || ZCE09 || ZCE67 || ZCE06 || ZCE10 || ZCE14 || ZCE27 || ZCE11 || ZCE65 || ZCE28 || ZCE64 |
| Contacts Type And Composition | 1 NC + 1 NO |
| Contacts Material | silver plated contacts |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60664 || 6 kV IEC 60947-1 |
| Positive Opening | with |
| Ambient Air Temperature For Storage | -40-70°C |
| Short-Circuit Protection | 10 A cartridge fuse gG |
| Package Quantity | 1 |
