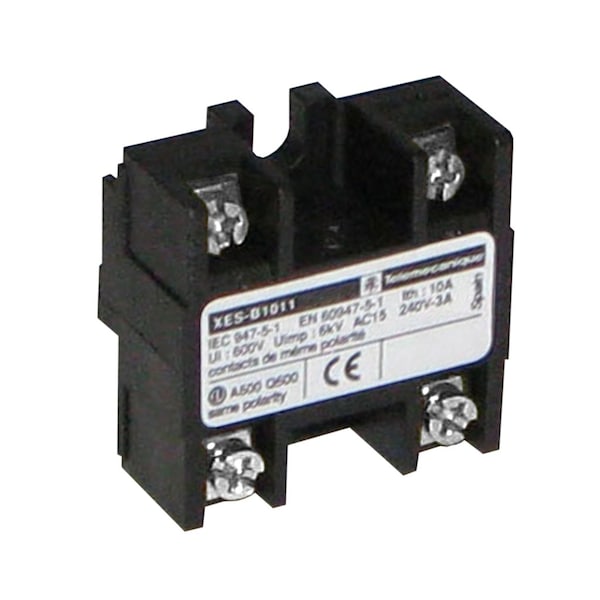

Contacto de interruptor de límite 600Vac 10A Xe
| Item | Limit Switch Contact Block |
|---|---|
| Contact Form | SPDT |
| AC Contact Rating | 10 A @ 600 V |
| IP Rating | Not Rated |
| Material | Not Applicable |
| Electrical Connection | Screw Terminal |
| Number Of Poles | 1 |
| Contacts Material | silver plated contacts |
| Contacts Type And Composition | O, 1 C |
| Contact Operation | snap action |
| Minimum Actuation Speed | 0.01 mm/sec |
| Series Name | standard format |
| Device Short Name | XESP |
| Product Or Component Type | limit switch contact block |
| Contacts Insulation Form | Za |
| Electrical Durability | 5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Maximum Resistance Across Terminals | 25 mOhm IEC 60255-7 category 3 |
| Positive Opening | without |
| Mounting Hole Horizontal Center to Center Distance | Not Applicable |
| Indicating Light | No Indicating Light Included |
| Compatible with Series | XCKJ |
| Compatible with Manufacturer Model Number | XCRT115EX, XCRT215EX |
| Mounting Hole Vertical Center to Center Distance | Not Applicable |
| Mounting Hole Diameter | Not Applicable |
| Body Configuration | Not Applicable |
| Number of Mounting Holes | Not Applicable |
| Compatible Manufacturer Part Number | XCRT115EX, XCRT215EX |
| Compatible Manufacturer Model Number | XCRT115EX, XCRT215EX |
| Package Quantity | 1 |
