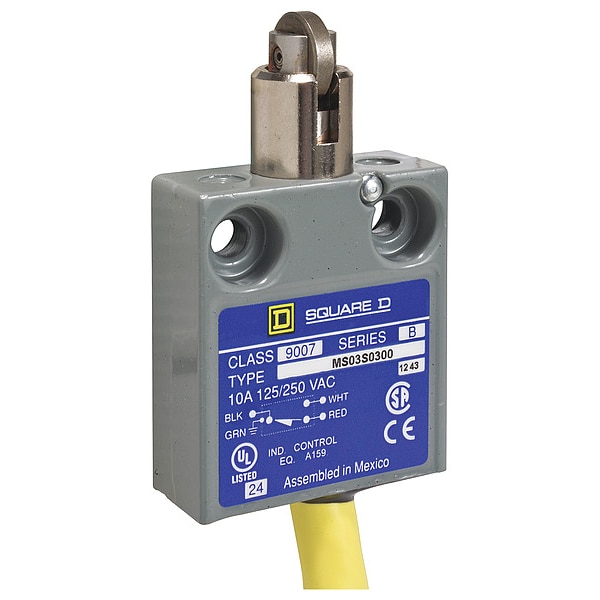

Interruptor de límite, rodillo cruzado, émbolo, 1NC/1NO, Ubicación del actuador: Superior
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Plunger |
| Actuator Style - Limit Switch | Cross Roller, Plunger |
| Contact Form- Switches | 1NC/1NO |
| Actuator Location - Limit Switch | Top |
| Body Style - Limit Switch | Miniature |
| Mounting - Limit Switch | Surface |
| Certification | CE, CSA, UL |
| Mounting Hole Pattern - Limit Switch | 2 Hole (Horizontal) |
| IP Rating | 67 |
| Boot Sealed Actuator - Limit Switch | No |
| Movement | Linear |
| Operating Temp. Range | -40 to 220 deg F |
| Special Features | Micrometer Adjustable and Low Temperature Operation |
| Body Material | Cast Zinc |
| Body Style (Limit Switch) | fixed |
| Body Height - Limit Switch | 1-3/4 in |
| Actuator Style | Cross Roller Plunger |
| Width | 1.56 in |
| Electrical Connection | 3 ft Cable, 18 AWG, SJTO |
| Body Depth - Limit Switch | 0.62 in |
| Roller Material | Steel |
| NEMA Rating | 1, 2, 4, 6, 6P |
| Contact Form | 1NC, 1NO |
| Standards | E78403, LR 25490 Class 32 11 03 |
| Contact Material | silver contacts |
| Series | Miniature potted |
| Operating Force | 80 oz |
| Arm Material | Metal |
| Limit Switch Style | Heavy Duty Limit Switch |
| Actuator Location | Top |
| Stem Thread - Limit Switch | No Stem |
| Head Type | plunger head |
| Mechanical Durability | 10,000,000 cycle |
| Weight | 1.2 lb |
| Shock Resistance | 35 gn 9 ms IEC 60068-2-27 |
| Contact Action | snap action |
| Actuation Type | by 30° cam |
| Vibration Resistance | 10 gn 75-1200 Hz)IEC 60068-2-6 |
| Electrical Durability | 100000 cycles |
| Body Height | 1-3/4 in |
| Overall Depth | 0.62 in |
| NEMA Enclosure Rating | 4, 1, 6, 6P, 2 |
| Number of Mounting Holes | 2 |
| Resistance Properties | Shock Resistant, Vibration Resistant |
| Operating Temperature - Maximum | 220 deg F |
| Wireless Network Interface | Not Applicable |
| Overall Height | 1-3/4 in |
| Body Depth | 0.62 in |
| Manufacturer Warranty Length | 18 mo |
| Overall Width | 1.56 in |
| Operating Force - Maximum | 80 ozf |
| Directional Movement | Linear |
| Boot Sealed Actuator | No Boot Included |
| Operating Temperature - Minimum | -40 deg F |
| Mounting Style | Surface |
| Type Of Operator | spring return cross roller plunger steel |
| Number Of Poles | 1 |
| Package Quantity | 1 |
