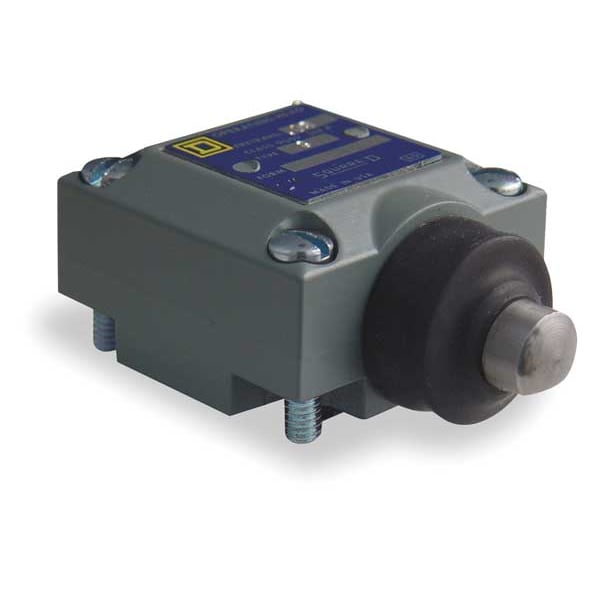

Cabeza de Interruptor de Límite, Émbolo, Lateral, 0.43 Pulgadas
| Item | Limit Switch Head |
|---|---|
| Roller Width | Not Applicable |
| For Use With | Mfr. No. XCKJ |
| Roller Position | Not Applicable |
| Movement | Omnidirectional |
| Description/Special Features | Momentary |
| Voltage Rating | Not Applicable |
| Contact Form | Not Applicable |
| Actuator Style | Plunger |
| IP Rating | Not Rated |
| Actuator Location | Side |
| Standards | EN 50047 |
| NEMA Rating | 1, 12, 2, 3, 4 |
| Travel | 0.24 in |
| Amps | 3A/0.27A |
| Operating Force | 4.5 in-lb |
| Actuator Length | 0.43 in |
| Operating Temp. | -25 Degrees to 70 Degrees F |
| Arm Material | Not Applicable |
| Roller Material | Not Applicable |
| Ambient Air Temperature For Storage | -40-70°C |
| Movement Of Operating Head | linear |
| Associated Body | ZCKJ5H7 || ZCKJ7H7 || ZCKJD39H29 || ZCKJ8 || ZCKJD37H29 || ZCKJ7 || ZCKJD37 || ZCKJ5 || ZCKJD31 || ZCKJ2H7 || ZCKJ5H29 || ZCKJ1H29 || ZCKJD35H7 || ZCKJ9H7 || ZCKJ11H29 || ZCKJ6 || ZCKJD37H7 || ZCKJ7H29 || ZCKJD31H29 || ZCKJ21H29 || ZCKJ9H29 || ZCKJ6H7 || ZCKJD35 || ZCKJ11 || ZCKJ8H7 || ZCKJD35H29 || ZCKJ1H7 || ZCKJ8H29 || ZCKJ6H29 || ZCKJ21H7 || ZCKJD39H7 || ZCKJ2 || ZCKJ11H7 || ZCKJ1 || ZCKJ21 || ZCKJ9 || ZCKJ2H29 || ZCKJD39 || ZCKJD31H7 |
| Ambient Air Temperature For Operation | -25-70°C |
| Type Of Approach | lateral approach, approach, 1 direction |
| Environmental Characteristic | standard environment |
| Head Type | plunger head |
| Positive Opening | with |
| Switch Actuation | on end |
| Device Short Name | ZCKE |
| Type Of Operator | plunger spring return metal |
| Product Compatibility | XCKJ |
| Head Material | Metal |
| Series Name | format |
| Product Or Component Type | limit switch head |
| Compatible with Series | XCKJ |
| Directional Movement | Linear |
| Roller Adjustability | Not Applicable |
| Arm Length - Maximum | Not Applicable |
| Arm Adjustability | Not Applicable |
| Total Travel | 0.24 in |
| NEMA Enclosure Rating | 1, 12, 2, 3, 4 |
| Arm Length - Minimum | Not Applicable |
| Operating Temperature - Minimum | -13 deg F |
| Roller Diameter | Not Applicable |
| Includes Actuator | Actuator Included |
| Manufacturer Warranty Length | 18 mo |
| Action | Momentary |
| Operating Torque | 4.5 in-lb |
| Operating Temperature - Maximum | 158 deg F |
| Package Quantity | 1 |
