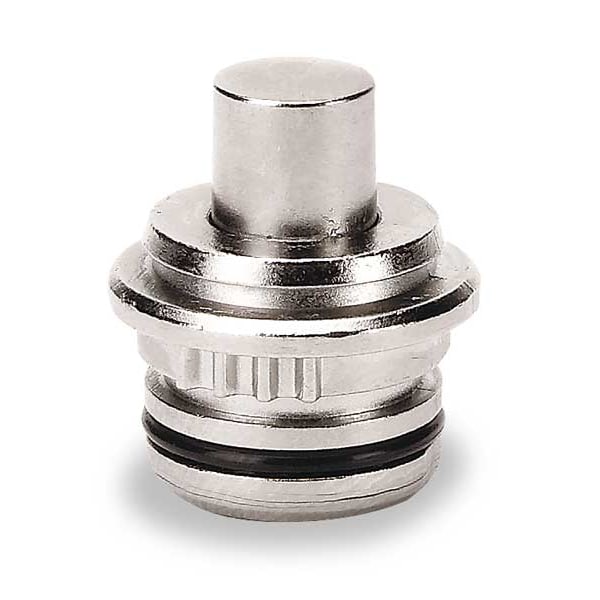

Cabezal de interruptor de límite, émbolo, parte superior, 0.39 pulgadas.
| Item | Limit Switch Head |
|---|---|
| Roller Width | Not Applicable |
| For Use With | Mfr. No. XCKD, XCKP, XCKT, XCMD |
| Roller Position | Not Applicable |
| Actuator Location | Top |
| Operating Force | 1.9 in-lb |
| Actuator Type | Plunger |
| Operating Temp. | -25 Degrees to 70 Degrees F |
| Actuator Style | Plunger |
| Movement | Omnidirectional |
| Description/Special Features | Momentary |
| Arm Depth | 0.39 in |
| Travel | 0.2 in |
| Actuator Length | 0.39 in |
| Arm Material | Not Applicable |
| Roller Material | Not Applicable |
| Standards | REACH, EU RoHS |
| IP Rating | Not Rated |
| Positive Opening | with |
| Ambient Air Temperature For Operation | -25-70°C |
| Movement Of Operating Head | linear |
| Device Short Name | ZCE |
| Type Of Operator | plunger spring return metal |
| Associated Body | ZCD37 || ZCMD37L1 || ZCP27 || ZCT27G11 || ZCMD21C12 || ZCD35 || ZCMD37L2 || ZCMD21L2 || ZCD31 || ZCMD25L5 || ZCT26N12 || ZCMD81L2 || ZCT28G11 || ZCD28 || ZCD27 || ZCT21N12 || ZCMD41L2 || ZCD26 || ZCMD37L5 || ZCMD21M12 || ZCT26P16 || ZCP29M12 || ZCMD41L1 || ZCD29M12 || ZCD21 || ZCMD29L1 || ZCMD29L5 || ZCT21G11 || ZCP21M12 || ZCMD61C12 || ZCMD81L5 || ZCMD39L5 || ZCT27N12 || ZCT25G11 || ZCMD29C12 || ZCMD21L08U78 || ZCMD25L2 || ZCD39 || ZCP26 || ZCP29 || ZCMD69C12 || ZCP39 || ZCP25 || ZCT25N12 || ZCMD25L1 || ZCT28N12 || ZCT27P16 || ZCP35 || ZCD25 || ZCMD39L1 || ZCD29 || ZCT26G11 || ZCD21M12 || ZCMD21L1 || ZCT21P16 || ZCMD41L5 || ZCP37 || ZCP28 || ZCMD21L08R12 || ZCP21 || ZCMD29L2 || ZCT25P16 || ZCMD81L1 || ZCMD39L2 || ZCMD61M12 || ZCP31 || ZCMD21L5 || ZCT28P16 |
| Head Type | plunger head |
| Product Or Component Type | limit switch head |
| Environmental Characteristic | standard environment |
| Product Compatibility | XCMD || XCKT || XCKD || XCKP |
| Series Name | format |
| Type Of Approach | approach, 1 direction |
| Ambient Air Temperature For Storage | -40-70°C |
| Arm Adjustability | Not Applicable |
| Operating Torque | 1.9 in-lb |
| NEMA Enclosure Rating | Not Rated |
| Roller Diameter | Not Applicable |
| Arm Length - Maximum | Not Applicable |
| Roller Adjustability | Not Applicable |
| Manufacturer Warranty Length | 18 mo |
| Operating Temperature - Minimum | -13 deg F |
| Compatible with Series | XCKD, XCKP, XCKT, XCMD |
| Arm Length - Minimum | Not Applicable |
| Action | Momentary |
| Directional Movement | Linear |
| Includes Actuator | Actuator Included |
| Operating Temperature - Maximum | 158 deg F |
| Package Quantity | 1 |
