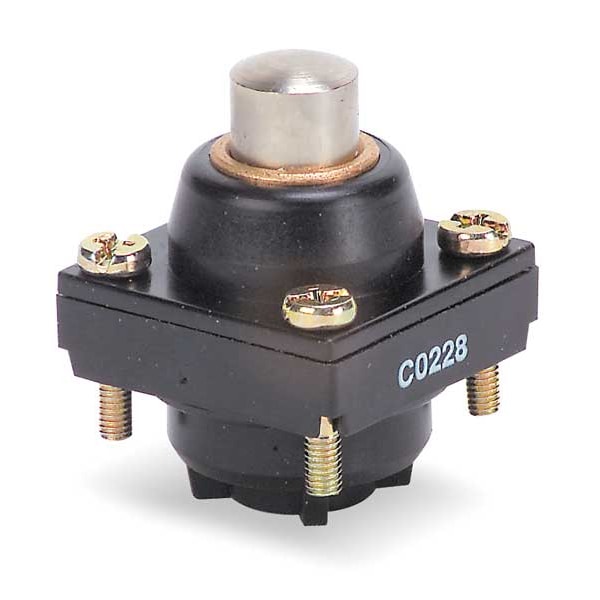

Cabeza de interruptor de límite, émbolo, parte superior, 0.93 pulgadas.
| Item | Limit Switch Head |
|---|---|
| Actuator Style | Plunger |
| Actuator Location | Top |
| Actuator Length | 0.93 in |
| Contact Form | Not Applicable |
| For Use With | Mfr. No. XCKL, XCKM |
| NEMA Rating | 1, 12, 2, 3, 4 |
| Movement | Top |
| IP Rating | Not Rated |
| Operating Force | 3.4 in-lb |
| Amps | 0.27A, 3A |
| Description/Special Features | Momentary |
| Voltage Rating | Not Applicable |
| Operating Temp. | -25 to 70 deg F |
| Travel | 0.22 in |
| Standards | EU RoHS, REACH |
| Positive Opening | with |
| Device Short Name | ZCKD |
| Movement Of Operating Head | linear |
| Ambient Air Temperature For Storage | -40-70°C |
| Ambient Air Temperature For Operation | -25-70°C |
| Switch Actuation | on end |
| Series Name | format |
| Product Compatibility | XCKM || XCKL |
| Head Type | plunger head |
| Product Or Component Type | limit switch head |
| Head Material | Plastic |
| Type Of Approach | approach, 1 direction, vertical approach |
| Environmental Characteristic | standard environment |
| Associated Body | ZCKMD37 || ZCKLD35H7 || ZCKL1H7 || ZCKMD37H7 || ZCKL5H7 || ZCKMD35H29 || ZCKM7H7 || ZCKLD35 || ZCKMD35 || ZCKM1H29 || ZCKM5H7 || ZCKL6H7 || ZCKLD37 || ZCKMD39H29 || ZCKLD31 || ZCKL8 || ZCKM8 || ZCKM5H29 || ZCKM7 || ZCKMD35H7 || ZCKM9H29 || ZCKM6H7 || ZCKL6 || ZCKM5 || ZCKLD31H7 || ZCKMD31H29 || ZCKL5 || ZCKM6 || ZCKLD37H7 || ZCKMD31 || ZCKM9 || ZCKMD37H29 || ZCKL1 || ZCKLD39H7 || ZCKM7H29 || ZCKM6H29 || ZCKMD39 || ZCKL8H7 || ZCKMD39H7 || ZCKM8H29 || ZCKLD39 || ZCKL7 || ZCKM1 || ZCKM1H7 || ZCKMD31H7 || ZCKL7H7 || ZCKM8H7 |
| Type Of Operator | end plunger spring return metal |
| Total Travel | 0.22 in |
| Includes Actuator | Actuator Included |
| Roller Width | Not Applicable |
| Action | Momentary |
| Arm Adjustability | Not Applicable |
| Arm Length - Minimum | Not Applicable |
| Operating Temperature - Maximum | 158 deg F |
| Roller Diameter | Not Applicable |
| Compatible with Series | XCKL, XCKM |
| NEMA Enclosure Rating | 1, 12, 2, 3, 4 |
| Roller Material | Not Applicable |
| Roller Adjustability | Not Applicable |
| Roller Position | Not Applicable |
| Manufacturer Warranty Length | 18 mo |
| Operating Torque | 3.4 in-lb |
| Arm Length - Maximum | Not Applicable |
| Directional Movement | Linear |
| Arm Material | Not Applicable |
| Operating Temperature - Minimum | -13 deg F |
| Package Quantity | 1 |
