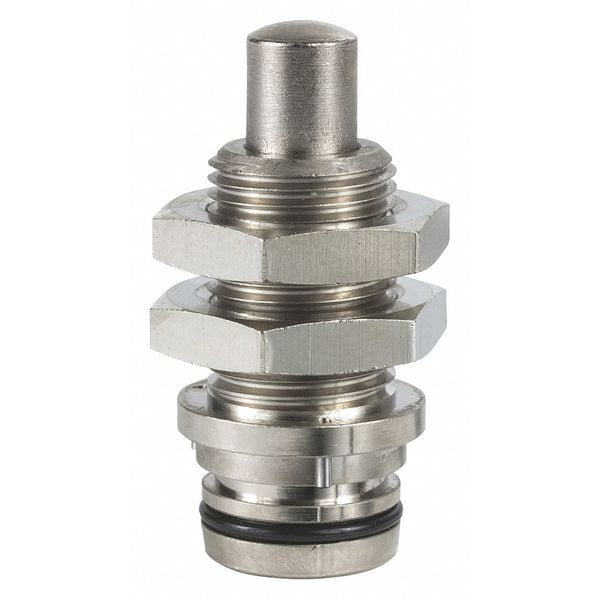

Cabezal de interruptor de límite, émbolo, parte superior, 0.94 pulgadas.
| Item | Limit Switch Head |
|---|---|
| For Use With | Mfr. No. XCKD, XCKP, XCKT, XCMD |
| Actuator Style | Plunger |
| Actuator Location | Top |
| Actuator Length | 0.95 in |
| Roller Width | Not Applicable |
| Arm Material | Not Applicable |
| Roller Material | Not Applicable |
| Actuator Type | Plunger |
| Operating Force | 0.60 in.-lb |
| Standards | EU RoHS, REACH |
| IP Rating | Not Rated |
| Associated Body | ZCMD29C12 || ZCMD81L5 || ZCMD39L5 || ZCMD37L2 || ZCMD69C12 || ZCMD37L5 || ZCMD21L08R12 || ZCMD39L2 || ZCMD39L1 || ZCMD25L1 || ZCMD41L2 || ZCMD61M12 || ZCMD29L1 || ZCMD21L5 || ZCMD41L5 || ZCMD25L5 || ZCMD21C12 || ZCMD61C12 || ZCMD81L2 || ZCMD21L2 || ZCMD29L5 || ZCMD37L1 || ZCMD21M12 || ZCMD81L1 || ZCMD25L2 || ZCMD29L2 || ZCMD21L1 || ZCMD41L1 || ZCMD21L08U78 |
| Ambient Air Temperature For Storage | -40-70°C |
| Positive Opening | with |
| Product Compatibility | XCKT || XCKP || XCMD || XCKD |
| Ambient Air Temperature For Operation | -25-70°C |
| Head Type | plunger head |
| Movement Of Operating Head | linear |
| Device Short Name | ZCE |
| Series Name | format |
| Environmental Characteristic | standard environment |
| Type Of Approach | approach, 1 direction, vertical approach |
| Type Of Operator | end plunger spring return metal |
| Product Or Component Type | limit switch head |
| Roller Position | Not Applicable |
| Operating Temperature - Maximum | 158 deg F |
| Action | Momentary |
| Arm Length - Maximum | Not Applicable |
| Compatible with Series | XCKD, XCKP, XCKT, XCMD |
| Arm Adjustability | Not Applicable |
| Includes Actuator | Actuator Included |
| Arm Length - Minimum | Not Applicable |
| Manufacturer Warranty Length | 18 mo |
| Directional Movement | Linear |
| NEMA Enclosure Rating | Not Rated |
| Roller Adjustability | Not Applicable |
| Roller Diameter | Not Applicable |
| Operating Temperature - Minimum | -13 deg F |
| Package Quantity | 1 |
