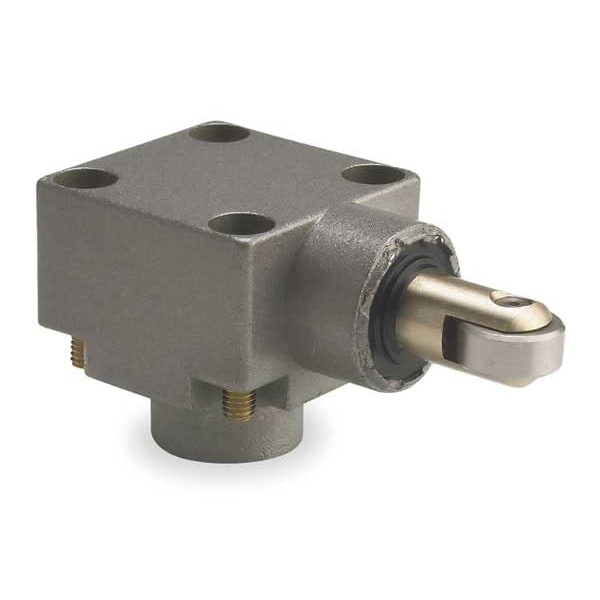

Cabeza de interruptor de límite, vástago de rodillo, lateral, .88 pulgadas
| Item | Limit Switch Head |
|---|---|
| Actuator Style | Push Roller Plunger |
| Actuator Location | Side |
| Actuator Length | 0.88 in |
| Contact Form | Not Applicable |
| For Use With | Mfr. No. XCKJ |
| NEMA Rating | 1, 12, 2, 3, 4 |
| Movement | CCW, CW |
| Operating Temp. | -25 to 70 deg F |
| Standards | EN 50047 |
| Operating Force | 3.6 in-lb |
| IP Rating | Not Rated |
| Amps | Not Applicable |
| Description/Special Features | Momentary |
| Travel | 0.13 in |
| Voltage Rating | Not Applicable |
| Positive Opening | with |
| Ambient Air Temperature For Storage | -40-70°C |
| Head Material | Metal |
| Type Of Approach | lateral approach, 2 directions |
| Associated Body | ZCKJD37 || ZCKJ7H29 || ZCKJD35 || ZCKJ1H7 || ZCKJD31H29 || ZCKJD39H7 || ZCKJD35H29 || ZCKJ21H7 || ZCKJ9H7 || ZCKJ9 || ZCKJ11 || ZCKJ6 || ZCKJD37H7 || ZCKJ5H29 || ZCKJ11H7 || ZCKJD35H7 || ZCKJ21 || ZCKJD31H7 || ZCKJ1 || ZCKJ11H29 || ZCKJ2H7 || ZCKJ7 || ZCKJ9H29 || ZCKJ8 || ZCKJ6H29 || ZCKJD39 || ZCKJ5H7 || ZCKJ2 || ZCKJD37H29 || ZCKJ8H29 || ZCKJD31 || ZCKJ2H29 || ZCKJ21H29 || ZCKJ7H7 || ZCKJD39H29 || ZCKJ1H29 || ZCKJ6H7 || ZCKJ8H7 || ZCKJ5 |
| Movement Of Operating Head | linear |
| Device Short Name | ZCKE |
| Switch Actuation | by 30° cam |
| Product Compatibility | XCKJ |
| Series Name | format |
| Product Or Component Type | limit switch head |
| Head Type | plunger head |
| Type Of Operator | side roller plunger spring return metal with roller |
| Environmental Characteristic | standard environment |
| Ambient Air Temperature For Operation | -25-70°C |
| Manufacturer Warranty Length | 18 mo |
| Operating Temperature - Minimum | -13 deg F |
| Operating Temperature - Maximum | 158 deg F |
| Total Travel | 0.13 in |
| Action | Momentary |
| Operating Torque | 3.6 in-lb |
| NEMA Enclosure Rating | 1, 12, 2, 3, 4 |
| Arm Adjustability | Not Applicable |
| Directional Movement | Linear |
| Includes Actuator | Actuator Included |
| Arm Material | Not Applicable |
| Arm Length - Maximum | 0.88 in |
| Arm Length - Minimum | Not Applicable |
| Compatible with Series | XCKJ |
| Package Quantity | 1 |
