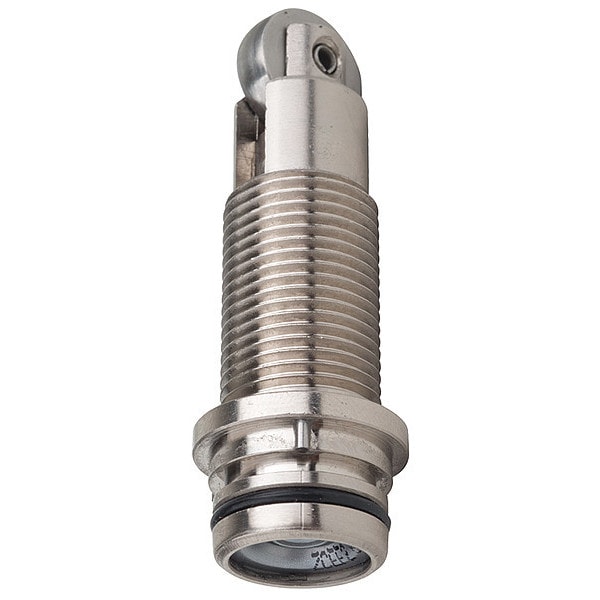

Cabezal de interruptor de límite, émbolo del rodillo, superior, 1.42 pulgadas.
| Item | Limit Switch Head |
|---|---|
| For Use With | Mfr. No. XCKD, XCKP, XCKT, XCMD |
| Actuator Style | Push Roller Plunger |
| Arm Length | 1.42 in |
| Actuator Location | Top |
| Actuator Length | 1.42 in |
| Arm Material | Not Applicable |
| Actuator Type | Roller Plunger |
| IP Rating | Not Rated |
| Operating Force | 2.70 in.-lb |
| Standards | EU RoHS, REACH |
| Head Type | plunger head |
| Type Of Approach | lateral approach, 2 directions |
| Ambient Air Temperature For Operation | -25-70°C |
| Product Or Component Type | limit switch head |
| Ambient Air Temperature For Storage | -40-70°C |
| Series Name | format |
| Movement Of Operating Head | linear |
| Switch Actuation | by 30° cam |
| Associated Body | ZCMD81L2 || ZCMD41L2 || ZCMD25L1 || ZCMD21M12 || ZCMD39L1 || ZCMD29L2 || ZCMD37L5 || ZCMD21L2 || ZCMD41L5 || ZCMD61M12 || ZCMD29C12 || ZCMD25L2 || ZCMD21C12 || ZCMD21L1 || ZCMD21L08U78 || ZCMD21L08R12 || ZCMD29L5 || ZCMD81L1 || ZCMD37L2 || ZCMD21L5 || ZCMD29L1 || ZCMD39L2 || ZCMD61C12 || ZCMD81L5 || ZCMD25L5 || ZCMD37L1 || ZCMD69C12 || ZCMD39L5 || ZCMD41L1 |
| Positive Opening | with |
| Type Of Operator | roller plunger spring return metal |
| Device Short Name | ZCE |
| Environmental Characteristic | standard environment |
| Product Compatibility | XCKT || XCKP || XCKD || XCMD |
| Directional Movement | Linear |
| Arm Adjustability | Not Applicable |
| Arm Length - Minimum | Not Applicable |
| Operating Temperature - Maximum | 158 deg F |
| Compatible with Series | XCKD, XCKP, XCKT, XCMD |
| Action | Momentary |
| Operating Temperature - Minimum | -13 deg F |
| NEMA Enclosure Rating | Not Rated |
| Manufacturer Warranty Length | 18 mo |
| Includes Actuator | Actuator Included |
| Arm Length - Maximum | 1.42 in |
| Package Quantity | 1 |
