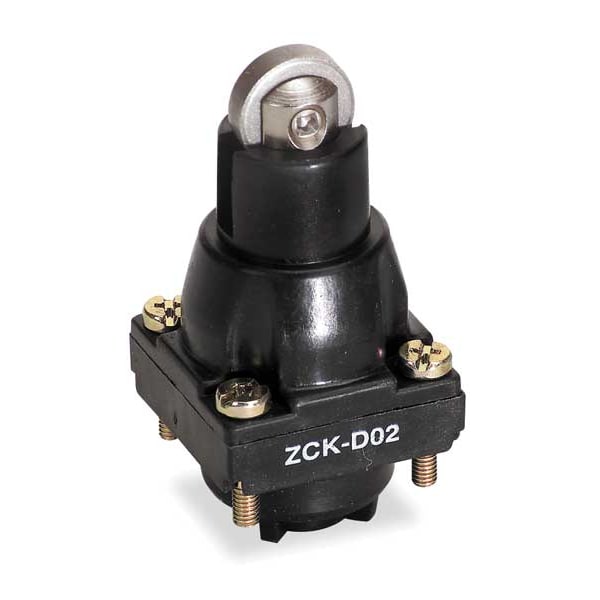

Cabeza de Interruptor de Límite, Émbolo con Rodillo, Superior, 1.69 Pulgadas
| Item | Limit Switch Head |
|---|---|
| Actuator Style | Push Roller Plunger |
| Actuator Location | Top |
| Actuator Length | 1.69 in |
| Contact Form | Not Applicable |
| For Use With | Mfr. No. XCKL, XCKM |
| NEMA Rating | 1, 12, 2, 3, 4 |
| Movement | Top |
| IP Rating | Not Rated |
| Standards | EU RoHS, REACH |
| Operating Temp. | -25 to 70 deg F |
| Travel | 0.32 in |
| Voltage Rating | Not Applicable |
| Description/Special Features | Momentary |
| Amps | 0.27A, 3A |
| Operating Force | 2.7 in-lb |
| Device Short Name | ZCKD |
| Environmental Characteristic | standard environment |
| Product Compatibility | XCKS || XCKM || XCKL |
| Associated Body | ZCKM1 || ZCKS8H29 || ZCKMD37H29 || ZCKM6H29 || ZCKL1H7 || ZCKLD37H7 || ZCKMD39 || ZCKS6 || ZCKMD35H7 || ZCKLD35 || ZCKS1 || ZCKSD35H29 || ZCKM5 || ZCKS2H29 || ZCKL6 || ZCKL5 || ZCKM7H29 || ZCKS1H29 || ZCKLD31H7 || ZCKM6 || ZCKM9 || ZCKSD37H29 || ZCKL6H7 || ZCKLD39H7 || ZCKMD31H29 || ZCKS5H29 || ZCKS9H29 || ZCKSD39 || ZCKM1H7 || ZCKMD35H29 || ZCKL8H7 || ZCKM8H29 || ZCKL1 || ZCKL7H7 || ZCKM7H7 || ZCKL5H7 || ZCKSD39H29 || ZCKM8 || ZCKM5H29 || ZCKLD37 || ZCKSD35 || ZCKM6H7 || ZCKM7 || ZCKM5H7 || ZCKL7 || ZCKS7 || ZCKS7H29 || ZCKMD39H7 || ZCKMD37H7 || ZCKLD31 || ZCKSD37 || ZCKMD39H29 || ZCKS5 || ZCKM1H29 || ZCKMD35 || ZCKS8 || ZCKLD35H7 || ZCKS6H29 || ZCKM9H29 || ZCKLD39 || ZCKL8 || ZCKMD37 || ZCKMD31 || ZCKM8H7 || ZCKS2 || ZCKSD31H29 || ZCKMD31H7 || ZCKSD31 || ZCKS9 |
| Ambient Air Temperature For Operation | -25-70°C |
| Head Type | plunger head |
| Type Of Approach | lateral approach, 2 directions |
| Product Or Component Type | limit switch head |
| Series Name | format |
| Head Material | Plastic |
| Type Of Operator | roller plunger spring return metal |
| Ambient Air Temperature For Storage | -40-70°C |
| Movement Of Operating Head | linear |
| Switch Actuation | by 30° cam |
| Positive Opening | with |
| Includes Actuator | Actuator Included |
| Operating Temperature - Maximum | 158 deg F |
| Operating Torque | 2.7 in-lb |
| NEMA Enclosure Rating | 1, 12, 2, 3, 4 |
| Operating Temperature - Minimum | -13 deg F |
| Arm Length - Maximum | 1.69 in |
| Directional Movement | Linear |
| Action | Momentary |
| Compatible with Series | XCKL, XCKM, XCKS |
| Manufacturer Warranty Length | 18 mo |
| Arm Length - Minimum | Not Applicable |
| Arm Material | Not Applicable |
| Total Travel | 0.32 in |
| Arm Adjustability | Not Applicable |
| Package Quantity | 1 |
