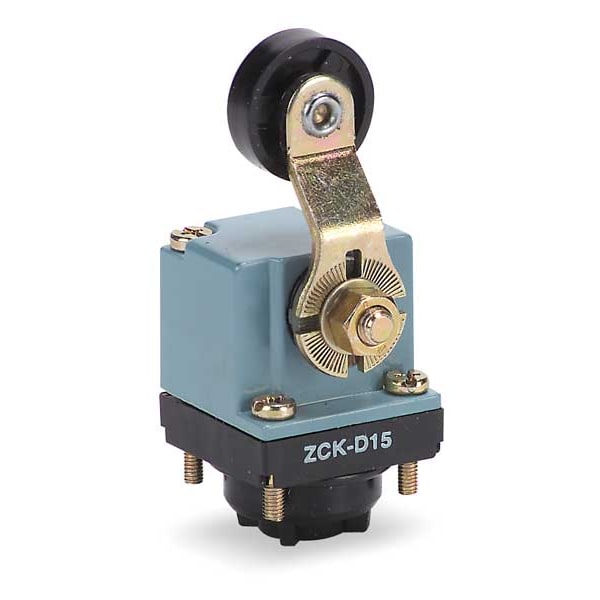

Cabeza de interruptor de límite, Palanca de rodillo, Lateral, 1,36 Pulgadas
| Item | Limit Switch Head |
|---|---|
| Actuator Style | Roller Lever Plunger |
| Actuator Location | Side |
| Actuator Length | 1.36 in |
| Contact Form | Not Applicable |
| For Use With | Mfr. No. XCKL, XCKM |
| NEMA Rating | 1, 12, 2, 3, 4 |
| Movement | Left, Right |
| Operating Temp. | -25 to 70 deg F |
| Standards | EU RoHS, REACH |
| Voltage Rating | Not Applicable |
| Description/Special Features | Momentary |
| Operating Force | 1.77 in-lb |
| IP Rating | Not Rated |
| Amps | 0.27A, 3A |
| Travel | 70 Degrees |
| Ambient Air Temperature For Storage | -40-70°C |
| Switch Actuation | by 30° cam |
| Series Name | format |
| Type Of Operator | roller lever spring return thermoplastic |
| Positive Opening | with |
| Head Type | rotary head |
| Device Short Name | ZCKD |
| Product Or Component Type | limit switch head |
| Associated Body | ZCKMD39 || ZCKL1 || ZCKLD31H7 || ZCKLD35H7 || ZCKMD35 || ZCKM1H7 || ZCKM5 || ZCKM1H29 || ZCKLD39H7 || ZCKM8H29 || ZCKL5 || ZCKM1 || ZCKM8H7 || ZCKLD37H7 || ZCKL7H7 || ZCKM6H29 || ZCKM9H29 || ZCKM5H29 || ZCKMD35H7 || ZCKM8 || ZCKMD37H7 || ZCKL7 || ZCKLD39 || ZCKMD37 || ZCKL8 || ZCKMD31 || ZCKLD31 || ZCKL1H7 || ZCKMD35H29 || ZCKM7 || ZCKM6H7 || ZCKM6 || ZCKL5H7 || ZCKM9 || ZCKL6 || ZCKL6H7 || ZCKM7H29 || ZCKM5H7 || ZCKMD31H7 || ZCKM7H7 || ZCKMD31H29 || ZCKLD37 || ZCKMD39H29 || ZCKL8H7 || ZCKMD39H7 || ZCKMD37H29 || ZCKLD35 |
| Environmental Characteristic | standard environment |
| Head Material | Metal |
| Type Of Approach | lateral approach, 2 directions |
| Movement Of Operating Head | rotary |
| Ambient Air Temperature For Operation | -25-70°C |
| Product Compatibility | XCKL || XCKM |
| Directional Movement | Linear |
| Operating Torque | 1.77 in-lb |
| Total Travel | 70 Degrees |
| Operating Temperature - Maximum | 158 deg F |
| NEMA Enclosure Rating | 1, 12, 2, 3, 4 |
| Action | Momentary |
| Operating Temperature - Minimum | -13 deg F |
| Arm Length - Maximum | 1.36 in |
| Compatible with Series | XCKL, XCKM |
| Includes Actuator | Actuator Included |
| Manufacturer Warranty Length | 18 mo |
| Package Quantity | 1 |
