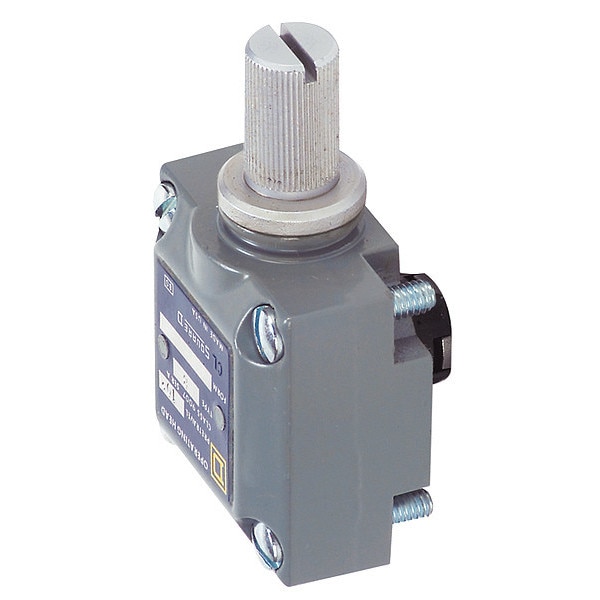

Cabezal de interruptor de límite, rotativo, lateral, 25 in.-oz.
| Item | Limit Switch Head |
|---|---|
| Actuator Style | Rotary Lever |
| Actuator Location | Side |
| Actuator Length | Not Applicable |
| Contact Form | Not Applicable |
| For Use With | 9007 Type C |
| NEMA Rating | 13, 4, 6P |
| Movement | Side |
| IP Rating | Not Rated |
| Travel | 90 Degrees |
| Standards | REACH |
| Amps | 10 |
| Voltage Rating | Not Applicable |
| Description/Special Features | Momentary |
| Operating Force | 25 in-oz |
| Operating Temp. | -20 to 185 deg F |
| Includes Actuator | No Actuator Included |
| Operating Temperature - Maximum | 185 deg F |
| Compatible with Series | 9007C |
| Roller Position | Not Applicable |
| Directional Movement | CCW, CW |
| Roller Material | Not Applicable |
| Operating Temperature - Minimum | -20 deg F |
| Arm Length - Minimum | Not Applicable |
| Manufacturer Warranty Length | 18 mo |
| Operating Torque | 1.56 in-lb |
| Arm Adjustability | Not Applicable |
| Arm Length - Maximum | Not Applicable |
| Arm Material | Not Applicable |
| Plunger Adjustability | Not Applicable |
| Roller Width | Not Applicable |
| Roller Diameter | Not Applicable |
| Action | Momentary |
| Total Travel | 90 Degrees |
| NEMA Enclosure Rating | 13, 4, 6P |
| Roller Adjustability | Not Applicable |
| Ambient Air Temperature For Storage | -20-185°F |
| Type Of Operator | spring return |
| Switch Actuation | CW and CCW || from left and right |
| Movement Of Operating Head | rotary |
| Ambient Air Temperature For Operation | -20-185°F |
| Associated Lever | 9007C |
| Positive Opening | without |
| Type Of Approach | lateral approach, 2 programmable directions |
| Product Or Component Type | limit switch head |
| Environmental Characteristic | standard environment |
| Associated Body | 9007C |
| Product Compatibility | 9007C |
| Series Name | heavy duty |
| Device Short Name | 9007C |
| Head Type | rotary head |
| Package Quantity | 1 |
