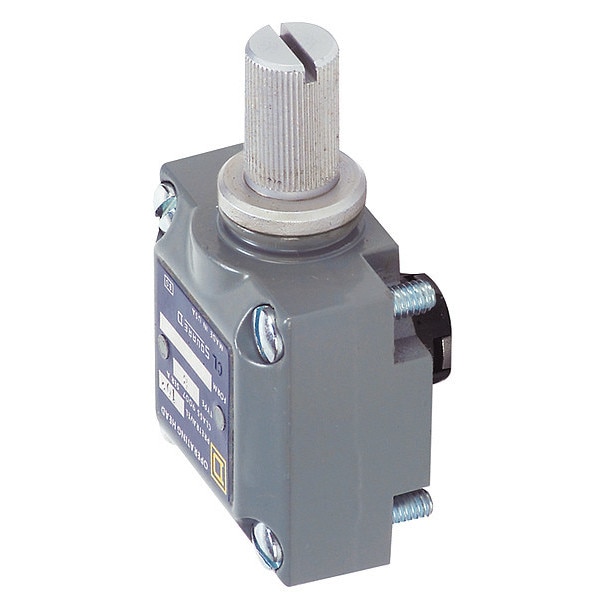

Cabeza de interruptor de límite, rotativa, lateral, CCW y CCW.
| Item | Limit Switch Head |
|---|---|
| Actuator Style | Rotary Lever |
| Actuator Location | Side |
| Actuator Length | Not Applicable |
| Contact Form | Not Applicable |
| For Use With | Mfr. No. XCKD, XCKP, XCKT, XCMD |
| NEMA Rating | 13, 4, 6P |
| Movement | CCW, CW |
| Operating Force | 4.0 in-lb |
| IP Rating | Not Rated |
| Operating Temp. | -20 to 185 deg F |
| Voltage Rating | Not Applicable |
| Description/Special Features | Momentary |
| Standards | REACH |
| Travel | 90 Degrees |
| Amps | Not Applicable |
| Operating Torque | 4 in-lb |
| Total Travel | 90 Degrees |
| Roller Position | Not Applicable |
| Operating Temperature - Maximum | 185 deg F |
| Roller Diameter | Not Applicable |
| Arm Length - Minimum | Not Applicable |
| Operating Temperature - Minimum | -20 deg F |
| NEMA Enclosure Rating | 13, 4, 6P |
| Arm Material | Not Applicable |
| Compatible with Series | 9007C |
| Action | Momentary |
| Roller Width | Not Applicable |
| Manufacturer Warranty Length | 18 mo |
| Roller Material | Not Applicable |
| Roller Adjustability | Not Applicable |
| Arm Adjustability | Not Applicable |
| Arm Length - Maximum | Not Applicable |
| Directional Movement | CCW, CW |
| Includes Actuator | No Actuator Included |
| Plunger Adjustability | Not Applicable |
| Device Short Name | 9007C |
| Series Name | heavy duty |
| Environmental Characteristic | standard environment |
| Product Compatibility | 9007C |
| Positive Opening | without |
| Ambient Air Temperature For Storage | -20-185°F |
| Head Type | rotary head |
| Type Of Operator | spring return neutral position without operating lever zinc |
| Product Or Component Type | limit switch head |
| Type Of Approach | lateral approach, 2 directions |
| Function Available | neutral position |
| Switch Actuation | from left and right || CW and CCW |
| Associated Lever | 9007C |
| Ambient Air Temperature For Operation | -20-185°F |
| Movement Of Operating Head | rotary |
| Associated Body | 9007C |
| Package Quantity | 1 |
