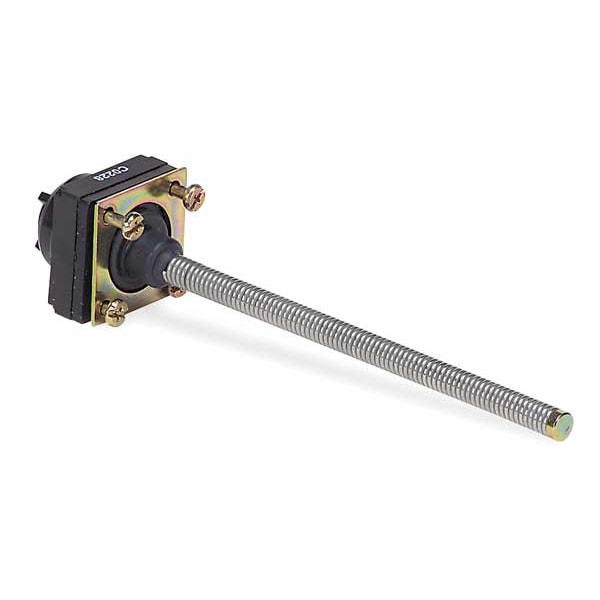

Cabeza de Interruptor de Límite, Palanca Wbbl, Superior, 5.06 Pulgadas
| Item | Limit Switch Head |
|---|---|
| Actuator Style | Rod |
| Actuator Location | Top |
| Actuator Length | 5.06 in |
| Contact Form | Not Applicable |
| For Use With | Mfr. No. XCKL, XCKM |
| NEMA Rating | 1, 12, 2, 3, 4 |
| Movement | Omnidirectional |
| Travel | 90 Degrees |
| Amps | 0.27A, 3A |
| Operating Force | 1.15 in-lb |
| Voltage Rating | Not Applicable |
| Standards | EU RoHS, REACH |
| Description/Special Features | Momentary |
| Operating Temp. | -25 to 70 deg F |
| IP Rating | Not Rated |
| Device Short Name | ZCKD |
| Associated Body | ZCKM7H7 || ZCKS1H29 || ZCKM8H7 || ZCKMD31 || ZCKSD37 || ZCKS5 || ZCKS9 || ZCKMD31H7 || ZCKS6 || ZCKL6H7 || ZCKSD35H29 || ZCKSD39H29 || ZCKMD37 || ZCKM6H7 || ZCKSD37H29 || ZCKSD31H29 || ZCKMD39H7 || ZCKS1 || ZCKMD39H29 || ZCKM7 || ZCKSD35 || ZCKM7H29 || ZCKLD39 || ZCKS2 || ZCKS7H29 || ZCKLD31 || ZCKL1H7 || ZCKM5H29 || ZCKM9H29 || ZCKMD39 || ZCKM1 || ZCKL5 || ZCKM5 || ZCKMD35 || ZCKM1H29 || ZCKLD35 || ZCKL1 || ZCKS5H29 || ZCKMD31H29 || ZCKM5H7 || ZCKSD31 || ZCKLD39H7 || ZCKLD37 || ZCKM6 || ZCKL6 || ZCKSD39 || ZCKM8 || ZCKS9H29 || ZCKL8H7 || ZCKS8H29 || ZCKMD35H29 || ZCKM1H7 || ZCKL7 || ZCKMD37H29 || ZCKLD37H7 || ZCKLD35H7 || ZCKL8 || ZCKMD37H7 || ZCKL5H7 || ZCKL7H7 || ZCKS7 || ZCKS8 || ZCKMD35H7 || ZCKM9 || ZCKS6H29 || ZCKS2H29 || ZCKLD31H7 || ZCKM6H29 || ZCKM8H29 |
| Product Compatibility | XCKL || XCKM || XCKS |
| Switch Actuation | by any moving part |
| Head Material | Metal |
| Positive Opening | without |
| Type Of Operator | spring rod spring return |
| Ambient Air Temperature For Operation | -25-70°C |
| Ambient Air Temperature For Storage | -40-70°C |
| Environmental Characteristic | standard environment |
| Head Type | multi-directional head |
| Product Or Component Type | limit switch head |
| Movement Of Operating Head | multi-directional || rotary |
| Type Of Approach | multi-directional approach |
| Series Name | format |
| Directional Movement | Omnidirectional |
| Plunger Adjustability | Not Applicable |
| Operating Temperature - Minimum | -13 deg F |
| Total Travel | 90 Degrees |
| Arm Length - Minimum | Not Applicable |
| Operating Torque | 1.15 in-lb |
| Includes Actuator | Actuator Included |
| Manufacturer Warranty Length | 18 mo |
| Arm Length - Maximum | Not Applicable |
| Roller Position | Not Applicable |
| Roller Width | Not Applicable |
| Operating Temperature - Maximum | 158 deg F |
| Compatible with Series | XCKL, XCKM, XCKS |
| Arm Adjustability | Not Applicable |
| Roller Adjustability | Not Applicable |
| Roller Diameter | Not Applicable |
| Action | Momentary |
| Roller Material | Not Applicable |
| NEMA Enclosure Rating | 1, 12, 2, 3, 4 |
| Package Quantity | 1 |
