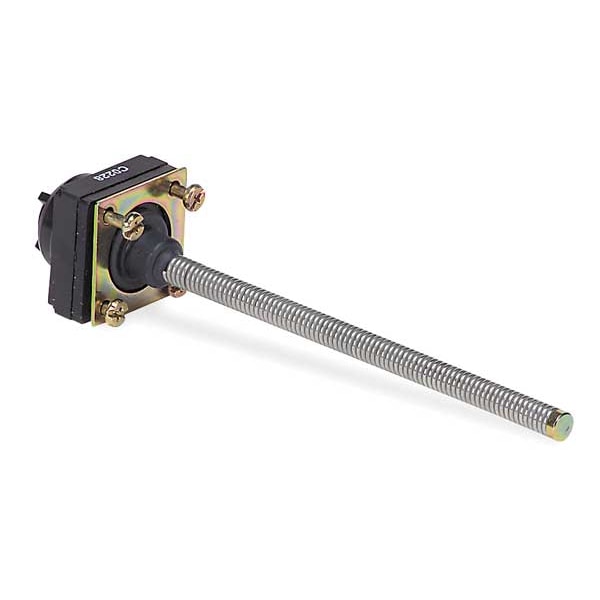

La cabeza de interruptor de límite WBBL Stick, Top, 5.06 In de Telemecanique Sensors es ideal para aplicaciones industriales que requieren un interruptor confiable y resistente. Con un diseño duradero y de alta calidad, esta cabeza de interruptor garantiza un rendimiento óptimo en entornos exigentes.
| Item | Limit Switch Head |
|---|---|
| Actuator Style | Rod |
| Actuator Location | Top |
| Actuator Length | 5.06 in |
| Contact Form | Not Applicable |
| For Use With | Mfr. No. XCKJ |
| NEMA Rating | 1, 12, 2, 3, 4 |
| Movement | Omnidirectional |
| Standards | EU RoHS, REACH |
| Voltage Rating | Not Applicable |
| IP Rating | Not Rated |
| Description/Special Features | Momentary |
| Operating Force | 1.44 in-oz |
| Operating Temp. | -25 to 70 deg F |
| Travel | 90 Degrees |
| Amps | 0.27A, 3A |
| Positive Opening | without |
| Type Of Operator | spring rod spring return |
| Product Compatibility | XCKJ |
| Ambient Air Temperature For Operation | -25-70°C |
| Ambient Air Temperature For Storage | -40-70°C |
| Type Of Approach | multi-directional approach |
| Associated Body | ZCKJ6H29 || ZCKJD31H29 || ZCKJD39H29 || ZCKJ5H7 || ZCKJD37H29 || ZCKJD31 || ZCKJ21 || ZCKJ9H29 || ZCKJ7 || ZCKJ5 || ZCKJ5H29 || ZCKJ1H29 || ZCKJ2H7 || ZCKJ21H29 || ZCKJ21H7 || ZCKJ1 || ZCKJD39 || ZCKJ11H7 || ZCKJ2 || ZCKJ8 || ZCKJ8H29 || ZCKJD39H7 || ZCKJD35 || ZCKJ9H7 || ZCKJD37 || ZCKJ2H29 || ZCKJ6H7 || ZCKJ6 || ZCKJ9 || ZCKJ8H7 || ZCKJD31H7 || ZCKJD35H7 || ZCKJ11 || ZCKJ11H29 || ZCKJ7H7 || ZCKJD35H29 || ZCKJ1H7 || ZCKJD37H7 || ZCKJ7H29 |
| Head Material | Metal |
| Switch Actuation | by any moving part |
| Product Or Component Type | limit switch head |
| Head Type | multi-directional head |
| Movement Of Operating Head | multi-directional || rotary |
| Environmental Characteristic | standard environment |
| Device Short Name | ZCKE |
| Series Name | format |
| Roller Width | Not Applicable |
| Manufacturer Warranty Length | 18 mo |
| Roller Position | Not Applicable |
| Operating Torque | 0.09 in-lb |
| Roller Diameter | Not Applicable |
| Compatible with Series | XCKJ |
| Action | Momentary |
| Directional Movement | Omnidirectional |
| Roller Material | Not Applicable |
| Arm Adjustability | Not Applicable |
| Operating Temperature - Maximum | 158 deg F |
| Arm Length - Minimum | Not Applicable |
| NEMA Enclosure Rating | 1, 12, 2, 3, 4 |
| Plunger Adjustability | Not Applicable |
| Roller Adjustability | Not Applicable |
| Includes Actuator | Actuator Included |
| Arm Length - Maximum | Not Applicable |
| Total Travel | 90 Degrees |
| Operating Temperature - Minimum | -13 deg F |
| Package Quantity | 1 |
