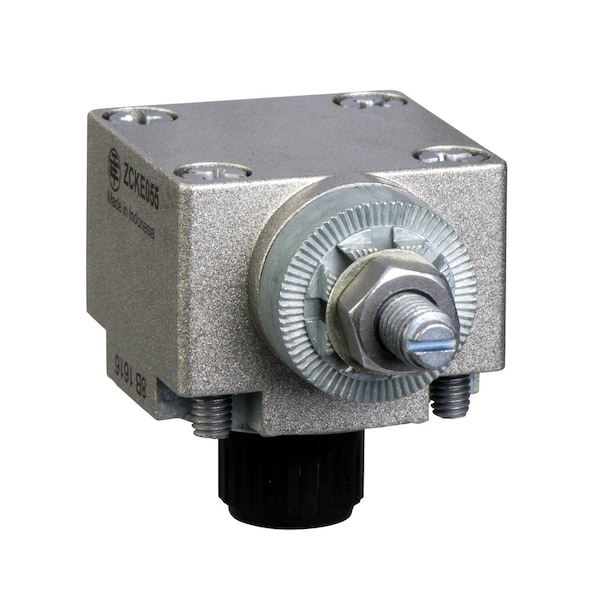

Cabeza del interruptor de límite Zcke055
| Item | Limit Switch Head |
|---|---|
| Actuator Style | Rotary Lever |
| Switch Actuation | from left and/or right || CW and/or CCW |
| Positive Opening | with |
| Associated Lever | ZCKY52 || ZCKY11 || ZCKY43 || ZCKY59 || ZCKY81 || ZCKY41 || ZCKY14 || ZCKY91 || ZCKY53 || ZCKY13 || ZCKY51 |
| Series Name | format |
| Associated Body | ZCKJ7H29 || ZCKJ6H29 || ZCKJ404H7 || ZCKJ9H7 || ZCKJ11H7 || ZCKJ41 || ZCKJ6H7 || ZCKJ11 || ZCKJ7H7 || ZCKJ9H29 || ZCKJ2H7 || ZCKJ4104H7 || ZCKJD39 || ZCKJD35H7 || ZCKJD31H7 || ZCKJ7 || ZCKJ1H7 || ZCKJ21 || ZCKJ8 || ZCKJ21H7 || ZCKJ8H29 || ZCKJ4H29 || ZCKJD35H29 || ZCKJ5H7 || ZCKJD39H7 || ZCKJ8H7 || ZCKJ5H29 || ZCKJ4H7 || ZCKJD35 || ZCKJ1H29 || ZCKJ21H29 || ZCKJ9 || ZCKJD37 || ZCKJ6 || ZCKJ41H7 || ZCKJD37H29 || ZCKJ2 || ZCKJ4104H29 || ZCKJD37H7 || ZCKJD31 || ZCKJ2H29 || ZCKJ5 || ZCKJ4 || ZCKJ1 || ZCKJ41H29 || ZCKJ4104 || ZCKJD31H29 || ZCKJ11H29 || ZCKJ404H29 || ZCKJD39H29 || ZCKJ404 |
| Ambient Air Temperature For Storage | 10-120°C |
| Head Type | rotary head |
| Product Compatibility | XCKJ |
| Device Short Name | ZCKE |
| Type Of Operator | without operating lever spring return |
| Ambient Air Temperature For Operation | 10-120°C |
| Type Of Approach | approach, 1 direction |
| Environmental Characteristic | high temperature |
| Movement Of Operating Head | rotary |
| Head Material | Metal |
| Product Or Component Type | limit switch head |
| Package Quantity | 1 |
