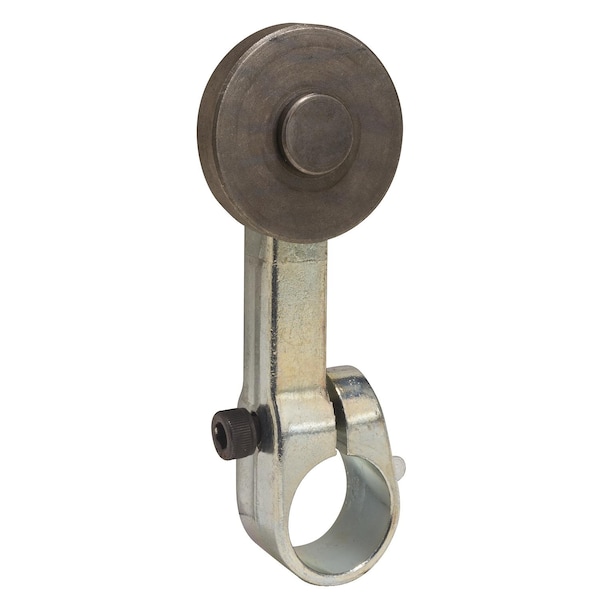

Brazo de palanca de interruptor de límite T+Ft +Opciones
| Item | Limit Switch Lever Arm |
|---|---|
| Actuator Style | Rotary Lever Roller |
| Type Of Approach | lateral approach |
| Series Name | severe duty |
| Movement Of Operating Head | rotary |
| Associated Complete Product | 9007FT || 9007T || 9007C..S9 |
| Device Short Name | 9007T, FT |
| Environmental Characteristic | standard environment |
| Positive Opening | without |
| Ambient Air Temperature For Operation | -10-185°F |
| Associated Head | 9007CS9 || 9007T10S9 || 9007NS9 || 9007AS9 || 9007BS9 || 9007T5S9 |
| Ambient Air Temperature For Storage | -10-185°F |
| Product Or Component Type | limit switch lever |
| Type Of Operator | cast zinc spring return roller lever 2.5-2.5 in - convertible roller |
| Switch Actuation | by 30° cam |
| Type Of Roller | 1 steel outside roller 1 in 0.25 in |
| Package Quantity | 1 |
