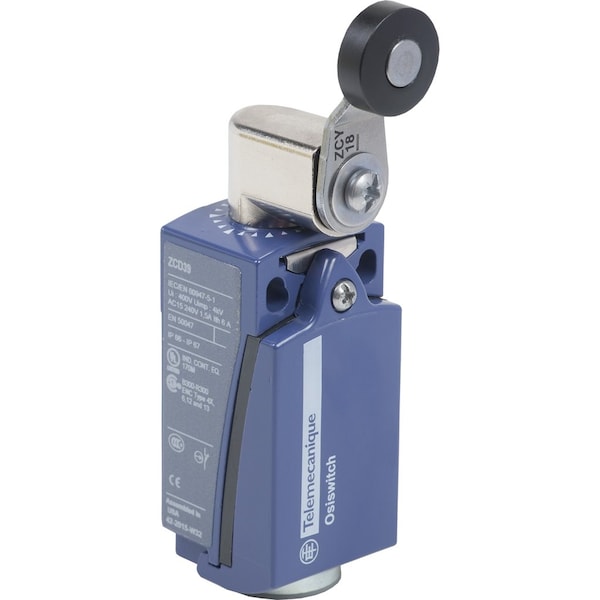

Interruptor de límite, palanca, rodillo, 1NC/1NO, ubicación del actuador: superior
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Lever |
| Actuator Style - Limit Switch | Lever, Roller |
| Contact Form- Switches | 1NC/1NO |
| Actuator Location - Limit Switch | Top |
| Electrical Connection | screw-clamp terminals 1 x 0.34...2 x 1.5 mm² |
| Standards | CSA C22.2 No 14 || UL 508 || IEC 60947-5-1 || EN 60204-1 || IEC 60204-1 || EN 60947-5-1 |
| Body Height - Limit Switch | 65 mm |
| Certification | CSA || CCC || UL |
| Operating Temp. Range | -25-70 °C |
| Movement | rotary |
| Special Features | lateral approach, 2 directions |
| Series | XCKD |
| Body Material | zamak |
| IP Rating | IP66IEC 60529 || IP67IEC 60529 |
| Body Style (Limit Switch) | fixed |
| Head Material | zamak |
| Body Depth - Limit Switch | 30 mm |
| Width | 31 mm |
| Contact Action | snap action |
| Weight | 0.225 kg |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Short Circuit Protection | 10 A cartridge fuse gG |
| Mechanical Durability | 10,000,000 cycle |
| Actuation Type | by 30° cam |
| Head Type | rotary head |
| Vibration Resistance | 25 gn 10-500 Hz)IEC 60068-2-6 |
| Min. Actuation Velocity Horizontal | 1.5 m/s |
| Electrical Durability | 5000000 cycles, DC-13, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Number Of Poles | 2 |
| Type Of Operator | spring return roller lever thermoplastic |
| Package Quantity | 1 |
