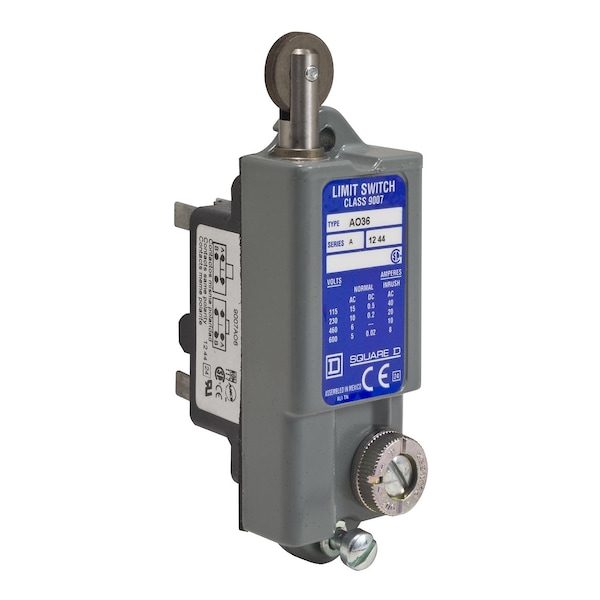

Interruptor de límite, NC-NO SPDT-DB; Forma Z, 15A @ 600V AC
| Item | Limit Switch |
|---|---|
| Contact Form- Switches | NC-NO SPDT-DB; Form Z |
| AC Contact Rating - Limit Switch | 15 A @ 600 V |
| Mounting - Limit Switch | open type |
| Contact Form | Form Z |
| Electrical Connection | 1-2 screw-clamp terminals AWG 22...AWG 12) |
| Special Features | traverse approach, 2 directions |
| Body Height - Limit Switch | 3.47 in |
| IP Rating | IP20 conforming to IEC 60529 |
| Body Style (Limit Switch) | plug-in body |
| NEMA Rating | NEMA 1 Nema type 250 |
| Contact Material | silver contacts |
| Width | 2.38 in |
| Movement | Linear |
| Operating Temp. Range | 0-185 °F |
| Body Material | cast zinc, metal |
| Series | 9007AW |
| Body Depth - Limit Switch | 1.38 in |
| Operating Force | 3 lbf |
| Head Type | plunger head |
| Actuation Type | by 30° cam |
| Contact Action | snap action |
| Weight | 0.1 lb |
| Number Of Poles | 1 |
| Type Of Operator | spring steel |
| Package Quantity | 1 |
