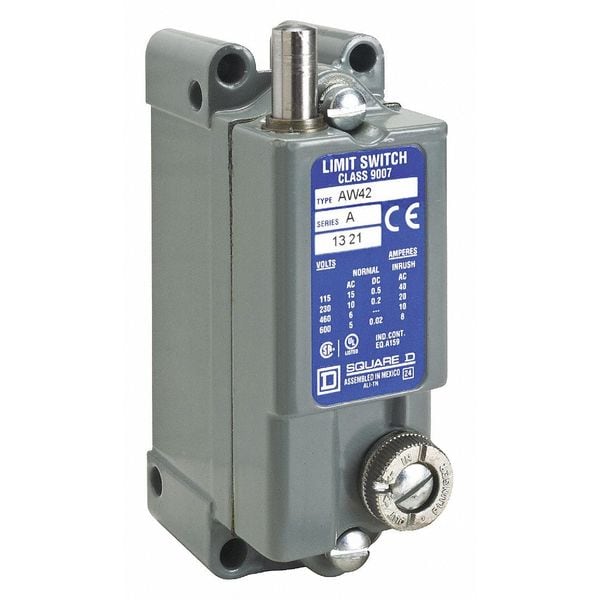

Interruptor de límite, NC-NO SPDT-DB; Forma Z, 15A @ 600V AC.
| Item | Limit Switch |
|---|---|
| Contact Form- Switches | NC-NO SPDT-DB; Form Z |
| AC Contact Rating - Limit Switch | 15 A @ 600 V |
| Mounting - Limit Switch | surface mounting standard box |
| Amps | 15 |
| Special Features | vertical approach, 1 direction |
| Movement | Linear |
| Contact Form | Form Z |
| Actuator Style | Push Rod Plunger |
| Contact Material | silver contacts |
| Differential Travel | 1.3 in |
| Series | 9007AW |
| Electrical Connection | 1-2 screw-clamp terminals AWG 22...AWG 12) |
| Body Height - Limit Switch | 3.68 in |
| Body Style (Limit Switch) | fixed |
| Body Depth - Limit Switch | 1.44 in |
| Operating Temp. Range | 0-185 °F |
| Operating Force | 3 lbf |
| Width | 2.22 in |
| NEMA Rating | NEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 12 Nema type 250 || NEMA 13 Nema type 250 |
| Body Material | cast zinc, metal |
| IP Rating | IP65 conforming to IEC 60529 |
| Weight | 1.25 lb |
| Actuation Type | on end |
| Contact Action | snap action |
| Head Type | plunger head |
| Total Travel | 0.25 in |
| Mounting Hole Diameter | 0.2 in |
| Mounting Hole Vertical Center to Center Distance | 89 mm |
| Plunger Adjustability | Adjustable |
| Pretravel | 0.09 in |
| Number of Mounting Holes | 6 |
| Mounting Hole Horizontal Center to Center Distance | 27 mm |
| Operating Force - Maximum | 3 lbf |
| Operating Torque - Maximum | Not Applicable |
| Type Of Operator | spring steel |
| Number Of Poles | 1 |
| Package Quantity | 1 |
