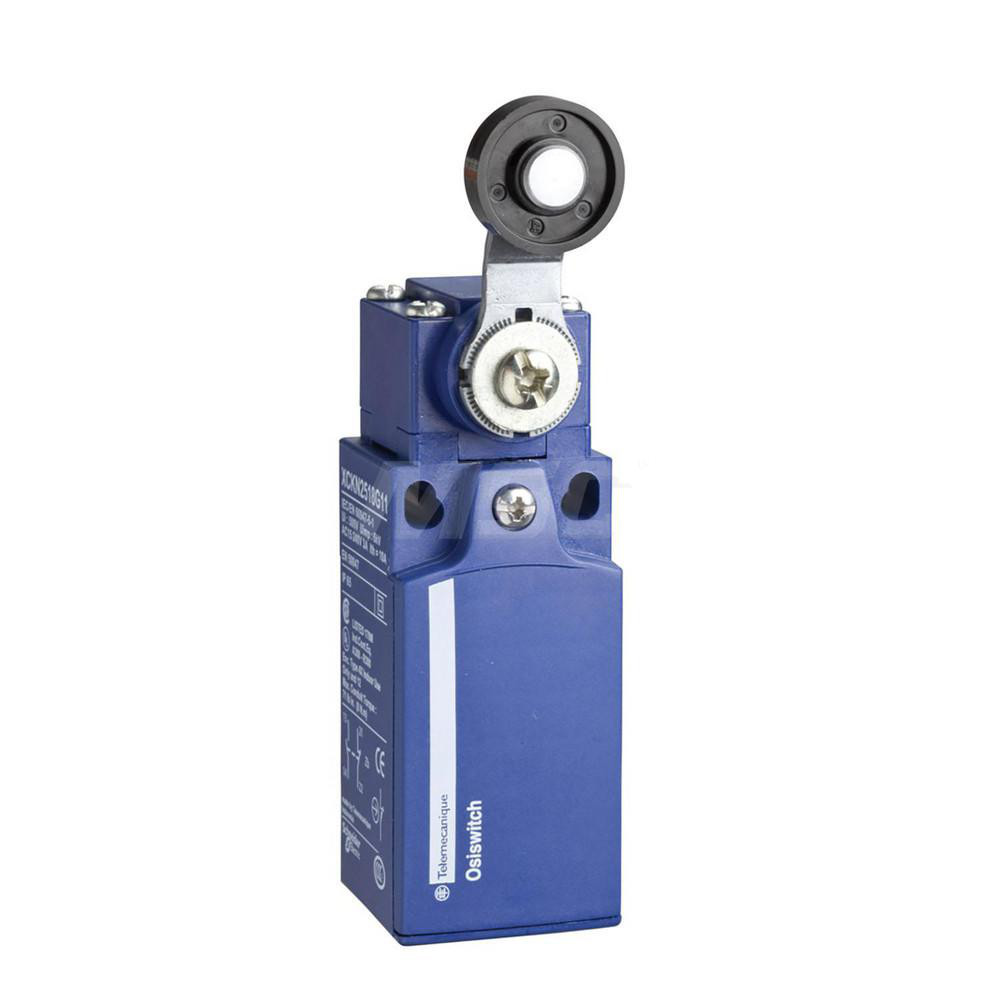

Rotary, Surface Mount, Screw
| Actuator Type | Roller Lever |
|---|---|
| Actuator Location | Top |
| Actuation Force | 0.10 |
| Switch Type | Limit |
| Switch Action | Springs Back (Momentary) |
| Body Material | Plastic |
| Mounting Type | Cable |
| Actuator Length (mm) | 19.00 |
| Amperage | 3.00 |
| Voltage | 240 V |
| Contact Form | 1NO; 1NC |
| Contact Configuration | NO; NC |
| Terminal Type | Screw |
| Mount Type | Surface |
| Mounting Thread Type | Metric |
| Connection Type | PG11 |
| Wire Connection Type | Screw Terminals |
| Ingress Protection Rating | IP65 |
| Minimum Operating Temperature | -13 F |
| Overall Width (mm) | 30.00 |
| Overall Depth (Mm) | 42.00 |
| Movement | Rotary |
| Standards | EN 60204-1; EN 60947-5-1; IEC 60204-1; UL 508; CSA C22.2 No 14; IEC 60947-5-1 |
| Series | XC |
| Overall Length (Feet) | 1.00 |
| UNSPSC Code | 39122209 |
| Country of Origin | Singapore |
| undefined | undefined |
| MSC Number | MSC# 20615340 |
