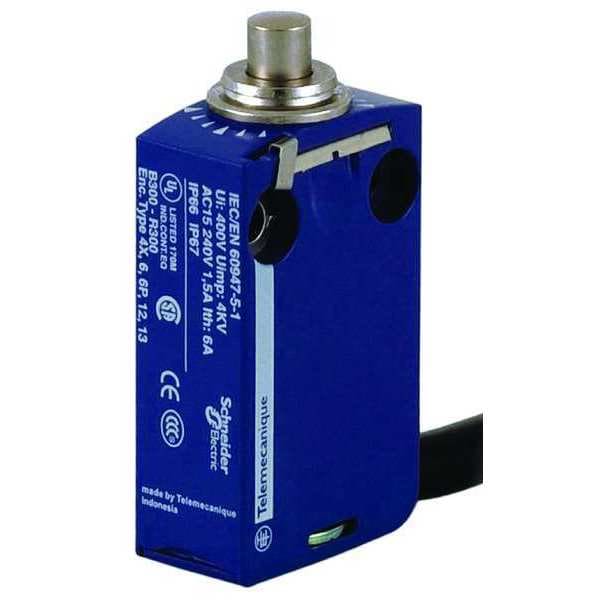

Interruptor de límite, émbolo, 1NC/1NO, 6A @ 240V AC, Ubicación del actuador: Parte superior
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Plunger |
| Actuator Style - Limit Switch | Plunger |
| Contact Form- Switches | 1NC/1NO |
| Actuator Location - Limit Switch | Top |
| AC Contact Rating - Limit Switch | 6 A @ 240 V |
| DC Contact Rating - Limit Switch | 6 A @ 240 V |
| Body Style - Limit Switch | Miniature |
| Mounting - Limit Switch | Surface |
| Body Material | Zinc |
| Limit Switch Style | General Purpose Limit Switch |
| DC Contact Rating | 6 A @ 240 V |
| Stem Thread - Limit Switch | No Stem |
| Arm Material | Metal |
| Contact Form - Limit Switch | 1NO, 1NC |
| Operating Force | 1.9 in-lb |
| Operating Temp. Range | -13 to 158 deg F |
| IP Rating | 68 |
| Actuator Location (Limit Switch) | Top |
| NEMA Rating | 1, 12, 13, 2, 4, 6, 6P |
| Voltage Rating | 240VAC/DC |
| Amps | 6 |
| Contact Form | 1NC, 1NO |
| Actuator Length - Limit Switch | 0.39 in |
| Travel | 0.20 in |
| Height | 1.97 in |
| Actuator Length | 0.39 in |
| Body Depth - Limit Switch | 0.63 in |
| Actuator Style (Limit Switch) | Plunger |
| Boot Sealed Actuator - Limit Switch | No |
| Actuator Style | Plunger |
| Movement | Vertical |
| Body Height - Limit Switch | 1.97 in |
| Electrical Connection | 5m Cable, 5 Wire |
| Wiring Entry | Cable |
| Boot Sealed Actuator (Limit Switch) | No |
| Mounting Hole Pattern - Limit Switch | 2 Hole (Horizontal) |
| Series | XCMD |
| Width | 1.18 in |
| Depth | 0.63 in |
| Mounting Hole Spacing - Limit Switch | 0.79 in |
| Actuator Location | Top |
| Standards | CE, CSA, UL |
| Mounting Hole - Limit Switch | (2) 0.16 in dia |
| Body Style (Limit Switch) | Miniature |
| Body Width - Limit Switch | 1.18 in |
| AC Contact Rating | 6 A @ 240 V |
| Basic Actuator Style (Limit Switch) | Plunger |
| Special Features | vertical approach, 1 direction |
| Certification | UL || CSA |
| Cable Length | 5 m |
| Head Material | zamak |
| Head Type | plunger head |
| Min. Actuation Velocity Horizontal | 0.5 m/s |
| Vibration Resistance | 5 gn 10-500 Hz)IEC 60068-2-6 |
| Actuation Type | on end |
| Electrical Durability | 5000000 cycles, DC-13, 120 V, 1 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Mechanical Durability | 10,000,000 cycle |
| Short Circuit Protection | 6 A cartridge fuse gG |
| Shock Resistance | 25 gn 18 ms IEC 60068-2-27 |
| Contact Action | snap action |
| Body Height | 1.97 in |
| Mounting Style | Surface |
| Body Depth | 0.63 in |
| Overall Height | 1.97 in |
| Boot Sealed Actuator | No Boot Included |
| NEMA Enclosure Rating | 4, 13, 1, 6, 6P, 12, 2 |
| Mounting Hole Diameter | 0.17 in |
| Overall Width | 1.18 in |
| Operating Force - Maximum | 8.5 N |
| Operating Torque - Maximum | 1.9 in-lb |
| Resistance Properties | Shock Resistant, Vibration Resistant |
| Wireless Network Interface | Not Applicable |
| Mounting Hole Horizontal Center to Center Distance | 20 mm |
| Manufacturer Warranty Length | 18 mo |
| Number of Mounting Holes | 2 |
| Operating Temperature - Maximum | 158 deg F |
| Overall Depth | 0.63 in |
| Operating Temperature - Minimum | -13 deg F |
| Directional Movement | Linear |
| Body Width | 1.18 in |
| Number Of Poles | 2 |
| Type Of Operator | spring return plunger metal |
| Package Quantity | 1 |
