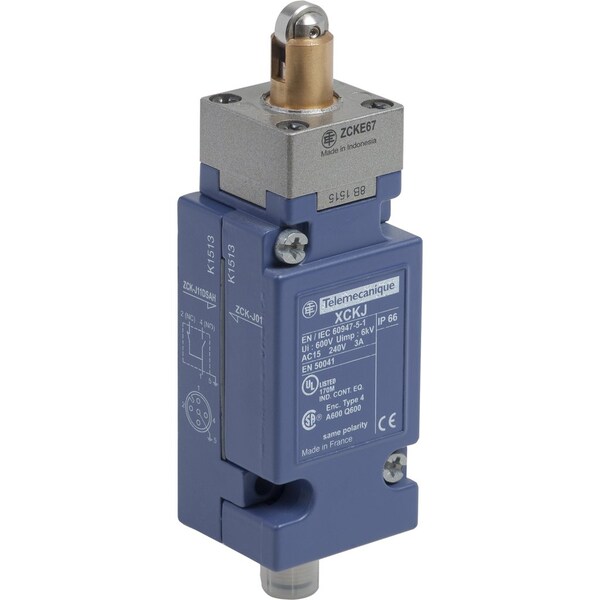

Interruptor de límite, émbolo, rodillo, 1 contacto/abierto, 10 amperios @ 240V AC, ubicación del actuador: superior
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Plunger |
| Actuator Style - Limit Switch | Plunger, Roller |
| Contact Form- Switches | 1C/O |
| Actuator Location - Limit Switch | Top |
| AC Contact Rating - Limit Switch | 10 A @ 240 V |
| Amps | 10 |
| Certification | UL || CSA || CCC |
| Electrical Connection | screw-clamp terminals 1 x 0.75...2 x 1.5 mm² |
| Head Material | zamak |
| Operating Force | 16 N |
| Body Depth - Limit Switch | 36 mm |
| Standards | IEC 60204-1 || CSA C22.2 No 14 || EN 60947-5-1 || CENELEC EN 50041 || EN 60204-1 || UL 508 || IEC 60947-5-1 |
| Body Material | zamak |
| Width | 43 mm |
| Series | XCKJ |
| Body Height - Limit Switch | 84 mm |
| IP Rating | IP66 conforming to IEC 60529 |
| Operating Temp. Range | -25-70 °C |
| Movement | Linear |
| Special Features | lateral approach, 2 directions |
| Body Style (Limit Switch) | plug-in body |
| Min. Actuation Velocity Horizontal | 1 m/s |
| Weight | 0.455 kg |
| Electrical Durability | 5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Vibration Resistance | 25 gn 10-500 Hz)IEC 60068-2-6 |
| Head Type | plunger head |
| Actuation Type | by 30° cam |
| Short Circuit Protection | 10 A cartridge fuse gG |
| Mechanical Durability | 25,000,000 cycle |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Contact Action | snap action |
| Type Of Operator | plunger |
| Number Of Poles | 1 |
| Package Quantity | 1 |
